Kia Forte: Body (Interior and Exterior) / Floor Console

Kia Forte 2019-2020 (BD) Service Manual / Body (Interior and Exterior) / Floor Console

Components and components location

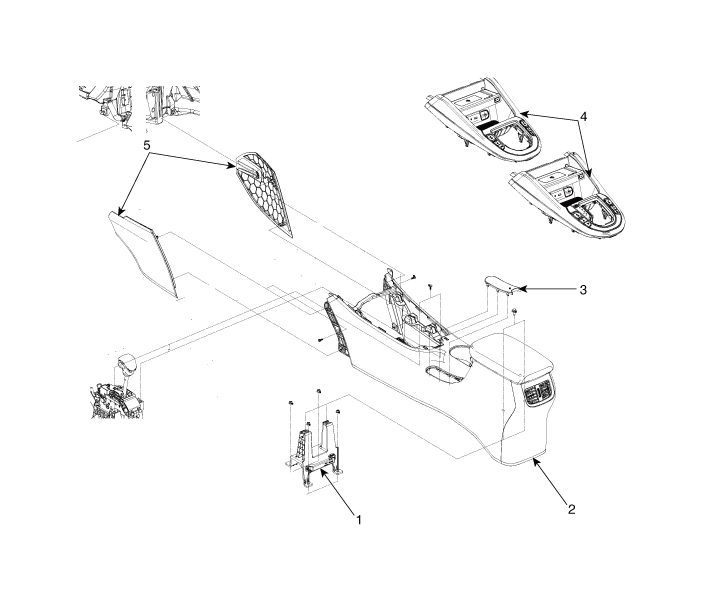

Components

1. Console rear mounting bracket
2. Floor console assembly
3. Parking brake cover

4. Console upper complete
5. Console side cover

Cowl Top Cover

Components and components location Component Location 1. Cowl top cover Repair procedures Replacement 1. Remove the plug h ...

Floor Console Assembly

Components and components location Component Location 1. Floor console assembly Repair procedures Replacement [Manual console] ...
