Kia Forte: Body (Interior and Exterior) / Cowl Top Cover

Kia Forte 2019-2021 (BD) Service Manual / Body (Interior and Exterior) / Cowl Top Cover

Components and components location

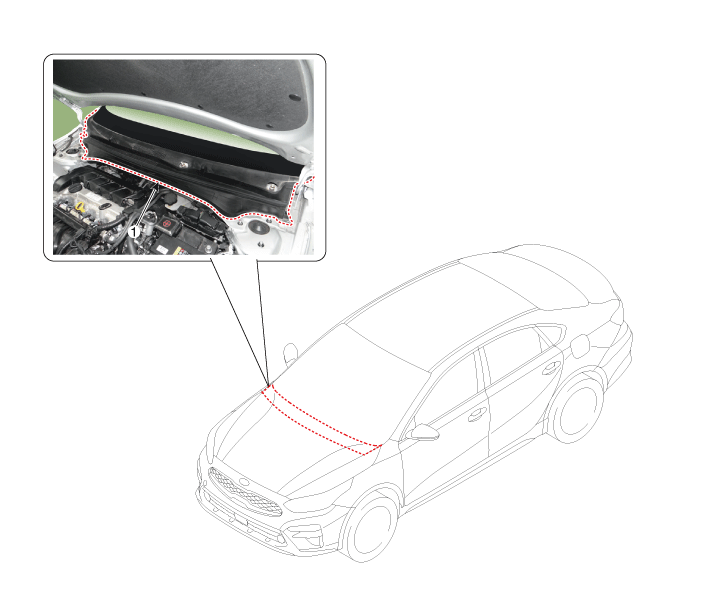

Component Location

1. Cowl top cover


Repair procedures
Replacement
1.

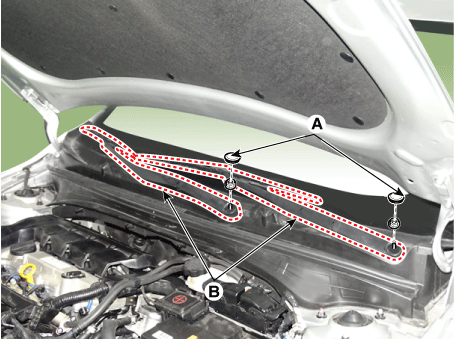

Remove the plug hole (A).

2.

Loosen the mounting nuts and remove the wiper arm (B).

Tightening torque :

22.6 - 26.5 N·m (2.3 - 2.7 Kgf·m, 16.6 - 19.5 lb·ft)

3.

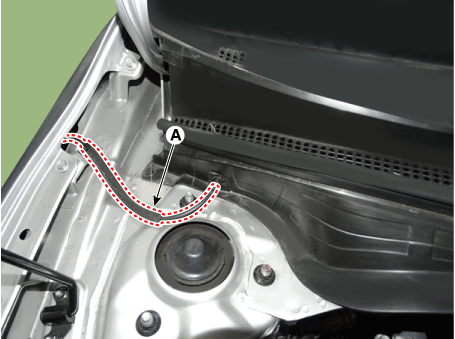

Disconnect the washer nozzle (A).

4.

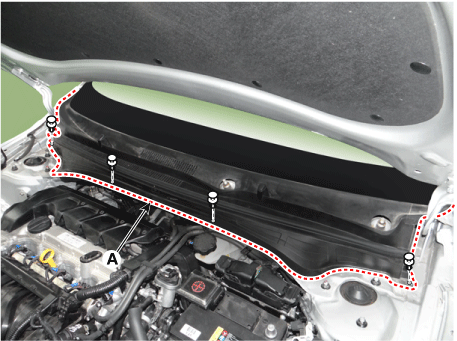

Detach the clips, then remove the cowl top cover (A).

5.

To install, reverse the removal procedure.



Replace any damaged clips (or pin - type retainers).
