Kia Forte: Mirror / Inside Rear View Mirror

Kia Forte 2019-2022 (BD) Service Manual / Body (Interior and Exterior) / Mirror / Inside Rear View Mirror

Components and components location
Component Location

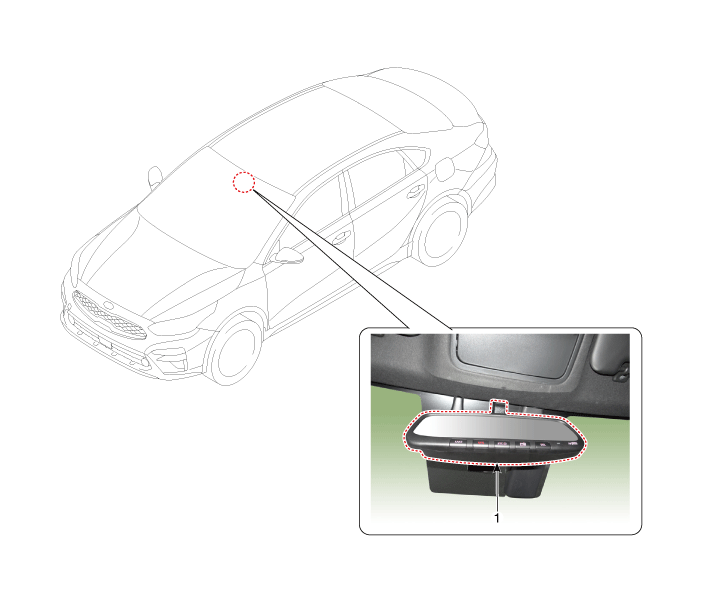

1. Inside rear view mirror


Repair procedures
Replacement


Put on gloves to prevent hand injuries.

1.

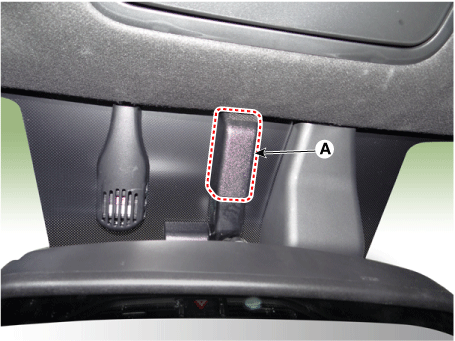

Remove the inside rear view mirror cover (A).

2.

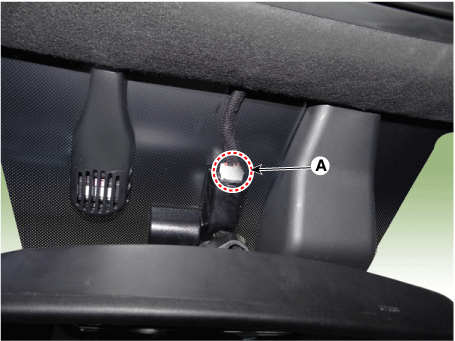

Disconnect the ECM mirror connector (A).

3.

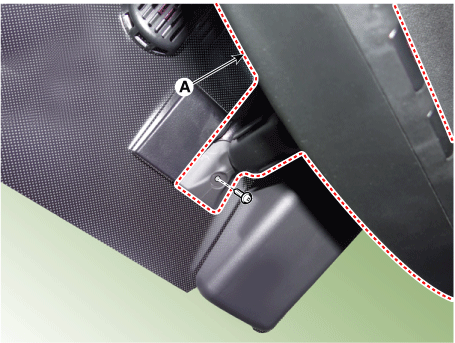

Loosen the mounted screws and push the ECM mirror base upward to remove the ECM mirror assembly (A).

4.

To install, reverse the removal procedure.



Make sure the connector is connected properly.

Be careful not to damage the windshield glass.
