Kia Forte: Front Door / Front Door Latch

Kia Forte 2019-2024 (BD) Service Manual / Body (Interior and Exterior) / Front Door / Front Door Latch

Components and components location

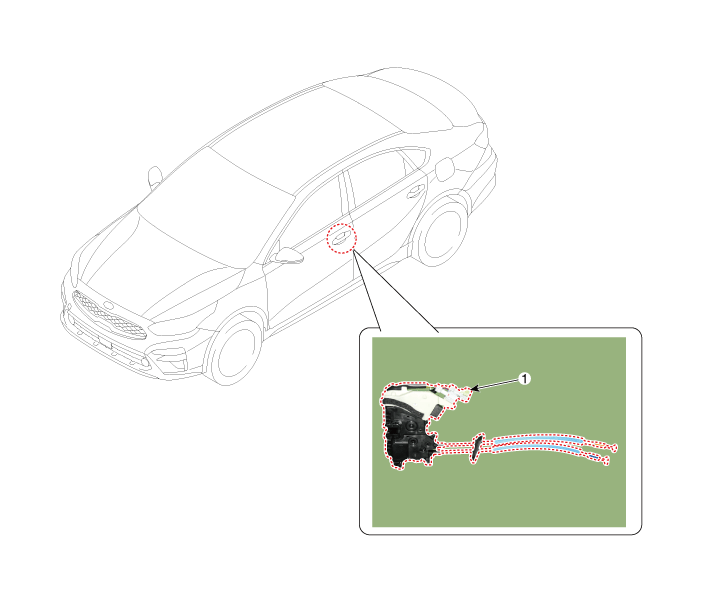

Component Location

1. Front door latch

Repair procedures

Replacement

1.	Remove the front door module. (Refer to Front Door - "Front Door Module")

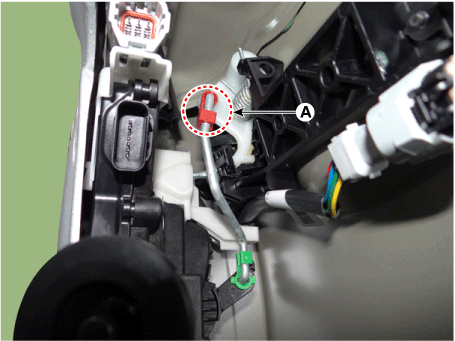

2.	Disconnect the front door latch load (A).

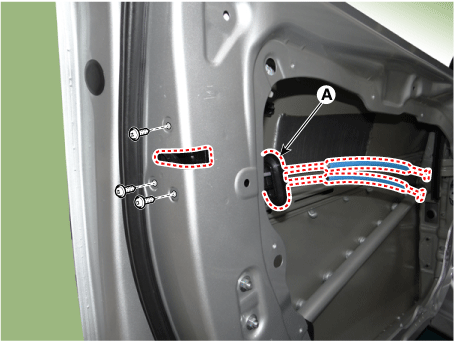

3.	After loosening the mounting screws, remove the front door latch (A)

To install, reverse the removal procedure.

•	Make sure the connector is connected properly.

•	Make sure the door locks / unlocks and opens / closes properly.

•	Replace any damaged clips (or pin - type retainers).
