Kia Forte: Front Door / Front Door Belt Outside Weatherstrip

Kia Forte 2019-2025 (BD) Service Manual / Body (Interior and Exterior) / Front Door / Front Door Belt Outside Weatherstrip

Repair procedures

Replacement

1.	Pull down the front door window glass to the lowest level by pressing the power window glass switch.

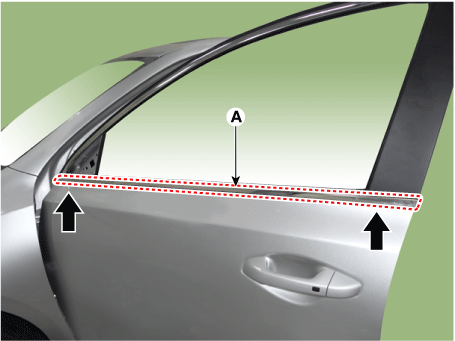

2.	Remove the front door belt outside weatherstrip (A).

To install, reverse the removal procedure.

Replace any damaged clips (or pin - type retainers).
