Description and operation
Description

The Dual Clutch Transmission (DCT) control system measures data required for identifying the state of control target and computes the appropriate compensation value if adjustment is necessary.

The actuator is controlled according to the computed compensation value to obtain desired output.

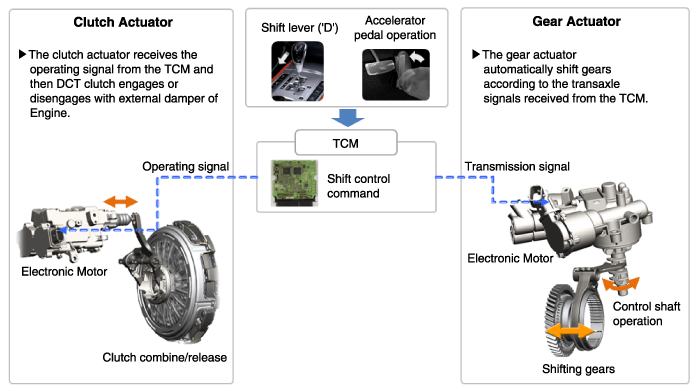

Operating principle

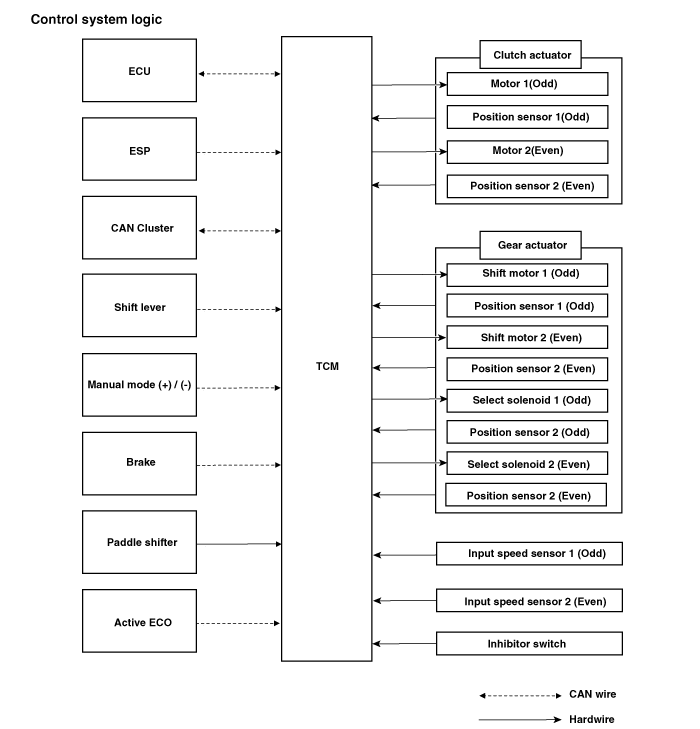

Control system logic

DCT(Dual Clutch Transmission) System
Service data Service Data Dual clutch transmission Transmission model D7UF1 Engine model Gamma 1.6 T-GDI Clutch ...

DCT Control Module (TCM)
Schematic diagrams TCM Connector TCM Terminal Function Connector [A] Pin Description Pin Description ...
