Kia Forte: Body (Interior and Exterior) / Rear Bumper

Kia Forte 2019-2021 (BD) Service Manual / Body (Interior and Exterior) / Rear Bumper

Components and components location
Components

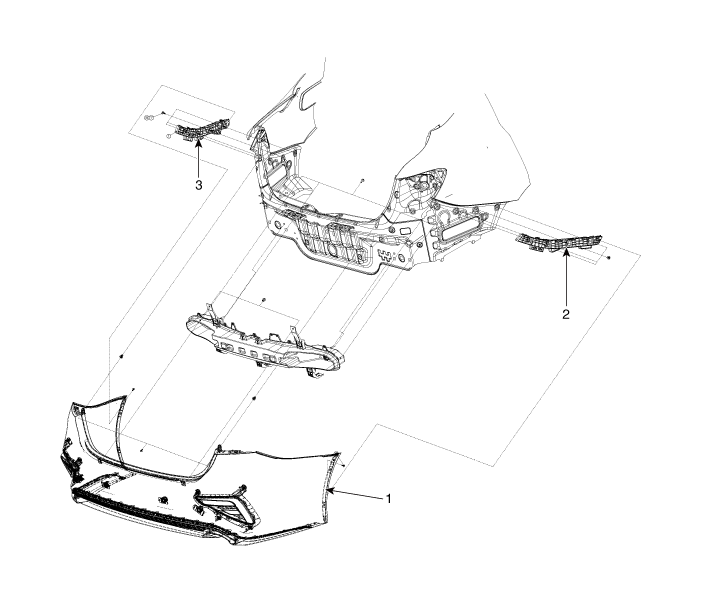

[4 Door]

1. Rear bumper assembly
2. Rear bumper side bracket [RH]

3. Rear bumper side bracket [LH]

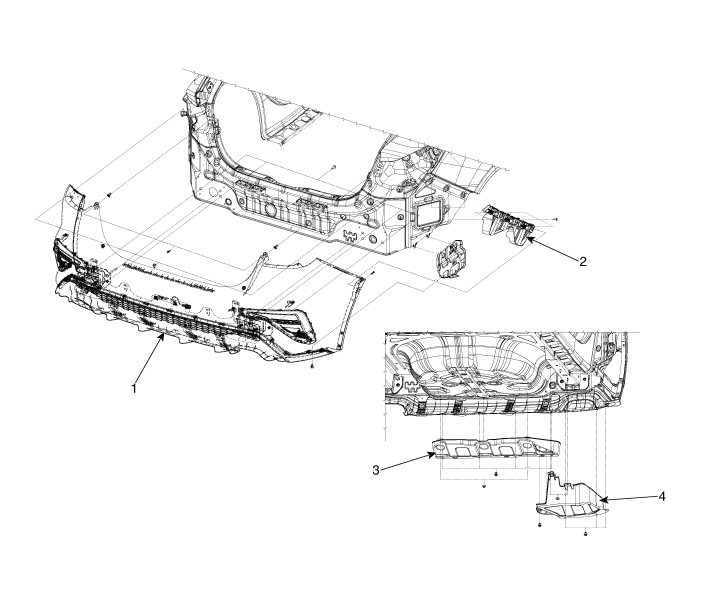

[5 Door]

1. Rear bumper assembly
2. Rear bumper side bracket

3. Rear center under cover
4. Rear side under cover
