Repair procedures
Removal and Installation
1.

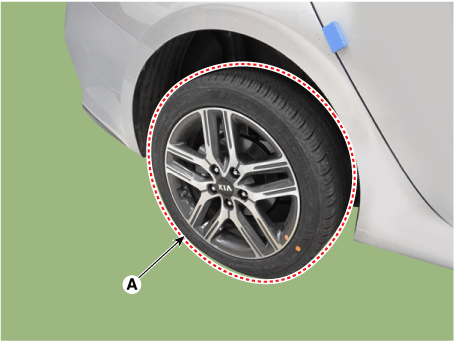

Remove the rear wheel and tire (A).

Tightening torque :

107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)



Be careful not to damage to the hub bolts when removing the rear wheel and tire.

2.

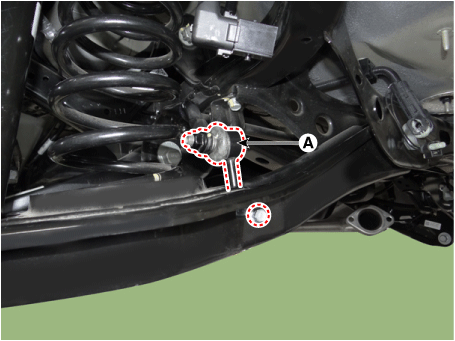

Separate the rear stabilizer link (A) by loosening the nut.

Tightening torque :

58.8 - 78.5 N·m (6.0 - 8.0 kgf·m, 43.4 - 57.9 lb·ft)



When loosening the nut, fix the outer hexagon of stabilizer bar link.

3.

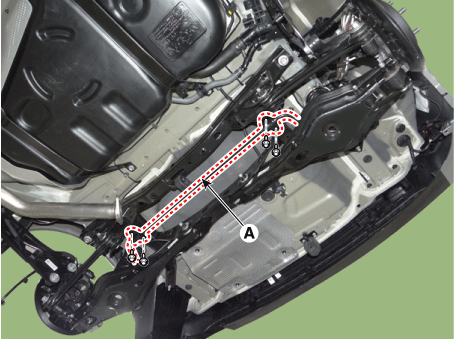

Remove the stabilizer bar (A) from the rear cross member by loosening the bolts.

Tightening torque :

44.1 - 53.9 N·m (4.5 - 5.5 kgf·m, 32.5 - 39.8 lb·ft)

4.

Install in the reverse order of removal.

Inspection
1.

Check the rear stabilizer bar for deformation.

2.

Check the rear stabilizer link ball joint for damage.
