Repair procedures
Removal and Installation
1.

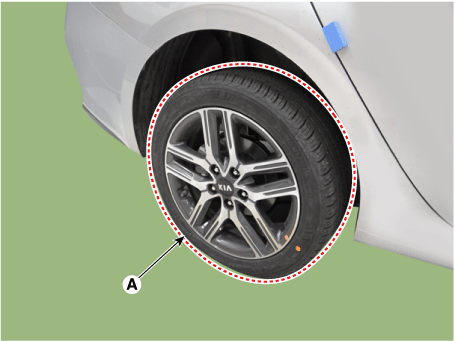

Remove the rear wheel and tire (A).

Tightening torque :

107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)



Be careful not to damage to the hub bolts when removing the rear wheel and tire.

2.

Remove the rear upper arm.

(1)

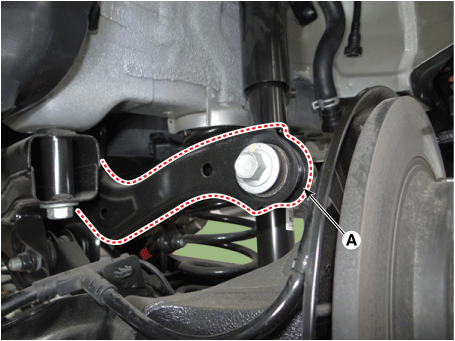

Separate the rear upper arm (A) from the rear carrier by loosening the bolt and nut.

Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

(2)

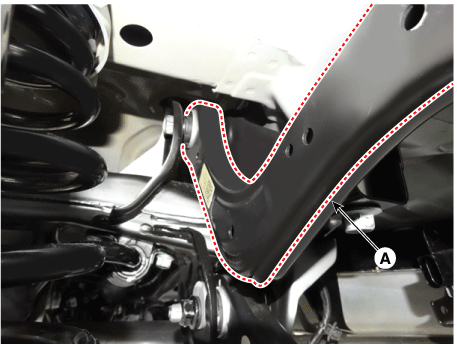

Separate the rear upper arm (A) from the rear cross member by loosening the bolt and nut.

Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

(3)

Remove the rear upper arm.

3.

Install in the reverse order of removal.

Inspection
1.

Check the bushing for wear and deterioration.

2.

Check for all bolts and nut.
