Kia Forte: Blower / Blower Motor

Kia Forte 2019-2023 (BD) Service Manual / Heating, Ventilation and Air Conditioning / Blower / Blower Motor

Repair procedures
Inspection
1.

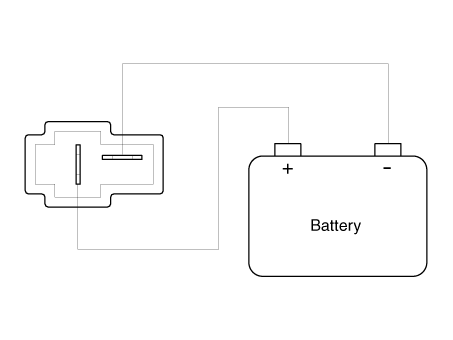

Connect the battery voltage and check the blower motor rotation.

2.

If the blower motor does not operate well, substitute with a known-good blower motor and check for proper operation.

3.

Replace the blower motor if it is proved that there is a problem with it.

Replacement
1.

Disconnect the negative (-) battery terminal.

2.

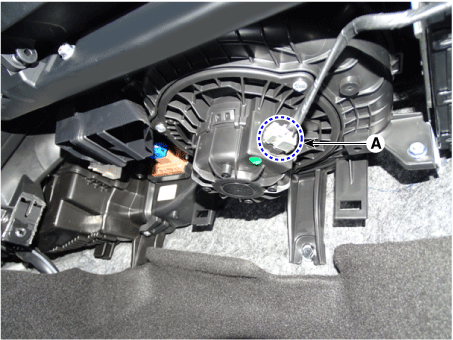

Disconnect the blower motor connector (A).

3.

After loosening the mounting screws, remove the blower motor (A).

4.

To install, reverse the removal procedure.
