Kia Forte: Blower / Blower Unit

Kia Forte 2019-2020 (BD) Service Manual / Heating, Ventilation and Air Conditioning / Blower / Blower Unit

Components and components location

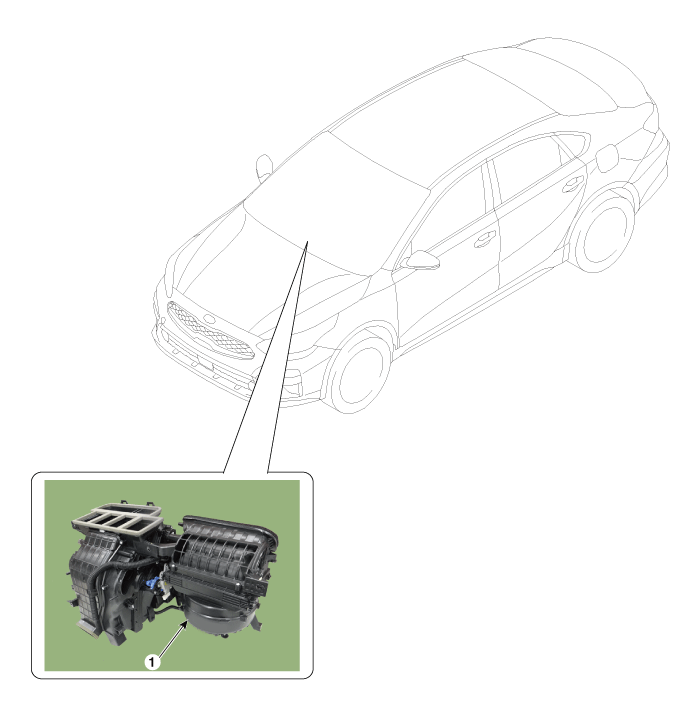

Component Location

1. Blower unit assembly

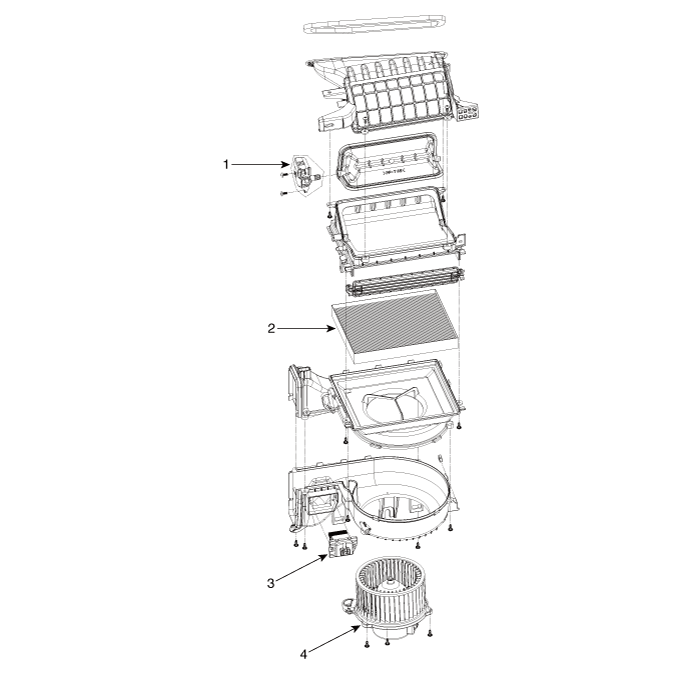

Components

1. Intake actuator
2. Air filter
3. Power mosfet
4. Blower motor

Repair procedures
Replacement


When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

1.

Remove the heater and blower assembly.

(Refer to Heater - "Heater Unit")

2.

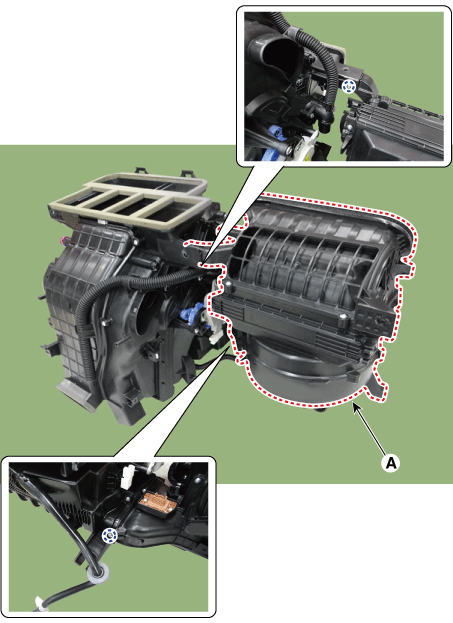

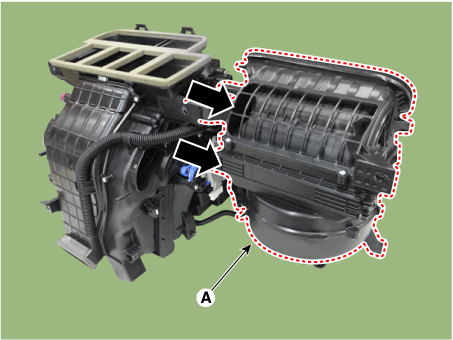

Separate the blower unit (A) from the heater unit after loosening the screws.

[Front]

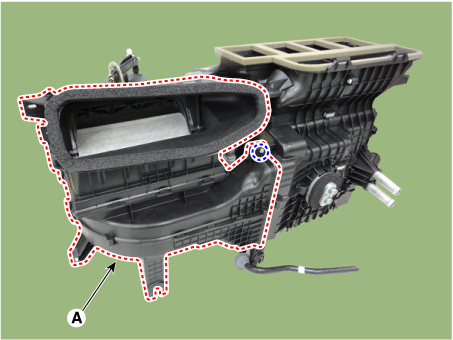

[Rear]

3.

To install, reverse the removal procedure.
