Kia Forte: Front Seat Belt / Height Adjust

Kia Forte 2019-2021 (BD) Service Manual / Body (Interior and Exterior) / Front Seat Belt / Height Adjust

Components and components location

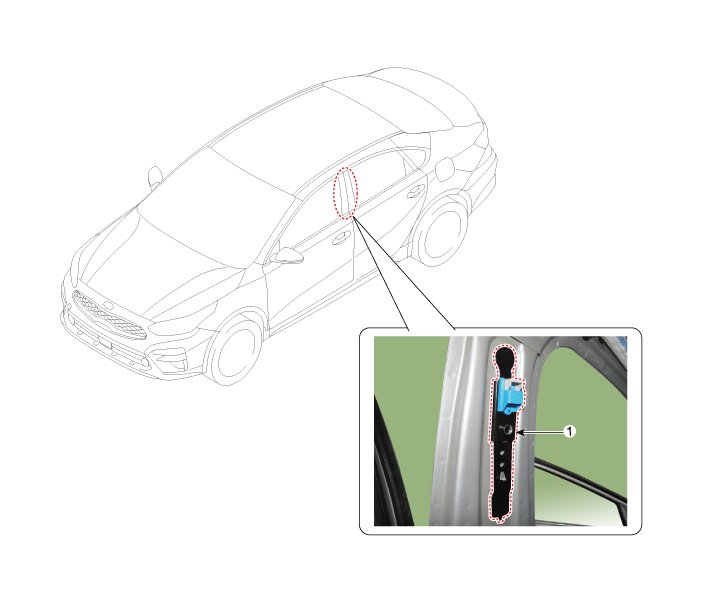

Component Location

1. Height adjust


Repair procedures
Replacement
1.

Remove the front seat belt upper anchor.

(Refer to Front Seat Belt - "Front Seat Belt Pretensioner")

2.

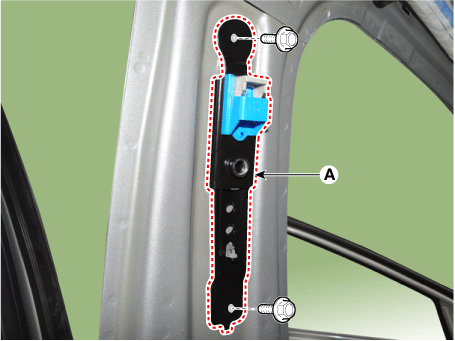

After loosening the mounting bolts, remove the height adjust (A).

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 Kgf·m, 28.9 - 39.8 lb·ft)

3.

To install, reverse the removal procedure.



Replace any damaged clips (or pin - type retainers).
