Components and components location

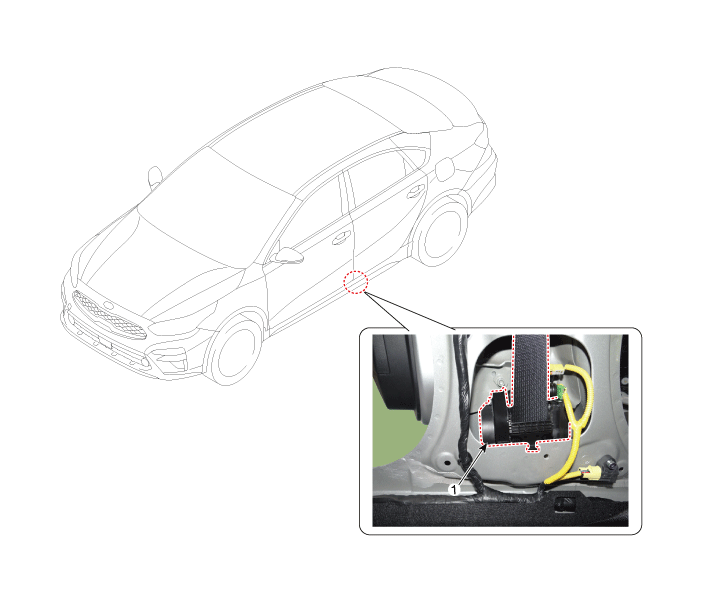

Component Location

1. Front seat belt pretensioner


Repair procedures
Replacement


When installing the belt, make sure not to damage the pretensioner.

1.

Remove the center pillar upper trim.

(Refer to Interior Trim - "Center Pillar Trim")

2.

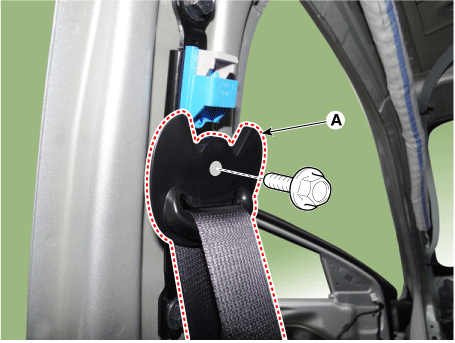

After loosening the front belt upper anchor mounting bolt, remove the front belt upper anchor (A).

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 Kgf·m, 28.8 - 39.8 lb·ft)

3.

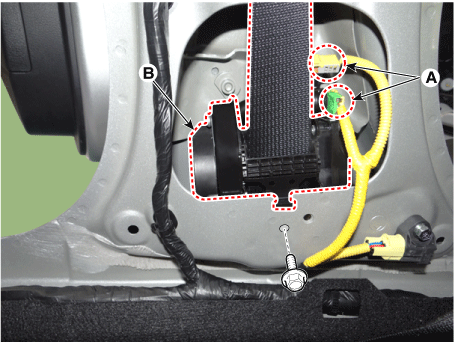

Disconnect the connector (A) and then remove the front seat belt pretensioner (B) after loosening the mounting bolt.

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 Kgf·m, 28.8 - 39.8 lb·ft)

4.

To install, reverse the removal procedure.



After installing the front seat belt retractor, check that the air bag warning indicator illuminates for about 6 seconds when the ignition is ON and then goes out.

Make sure the connector is plugged in properly.

Replace any damaged clips (or pin - type retainers).
