Kia Forte: Lighting System / Mood Lamp Unit

Kia Forte 2019-2022 (BD) Service Manual / Body Electrical System / Lighting System / Mood Lamp Unit

Repair procedures
Removal

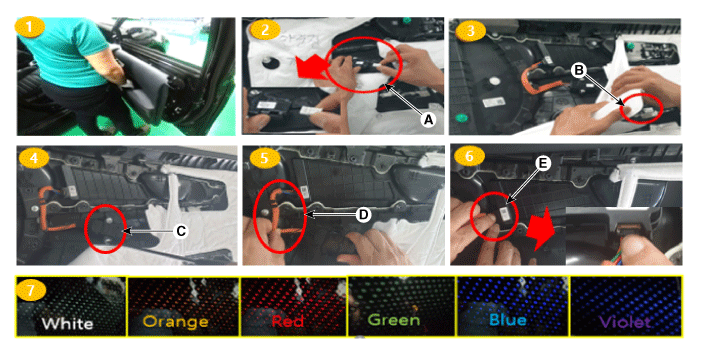

1.

Remove the front door trim.

(Refer to Body - "Front Door Trim")

2.

Disconnect the connector (A) from the mood lamp unit.

3.

Seperate the splice (B) of the sound proof surrounding the mood lamp unit.

4.

Loosen the mood lamp unit mounting screws (C).

5.

Remove the wiring harness fixing hooks (D).

6.

Remove the mood lamp unit by pressing the fixing hook (E) of the connector.



Check the conjunction status by pushing it until it clicks and pulling the wire harness.

Use hot-melt(gluegun) when attaching the surface.

Set the interior brightness to the maximum, when checking the mood lamp light status, and check color by color.

Installation
1.

Install in the reverse order of removal.
