Kia Forte: Body Electrical System / Headlamp Leveling Switch (Manual)

Kia Forte 2019-2020 (BD) Service Manual / Body Electrical System / Headlamp Leveling Switch (Manual)

Schematic diagrams

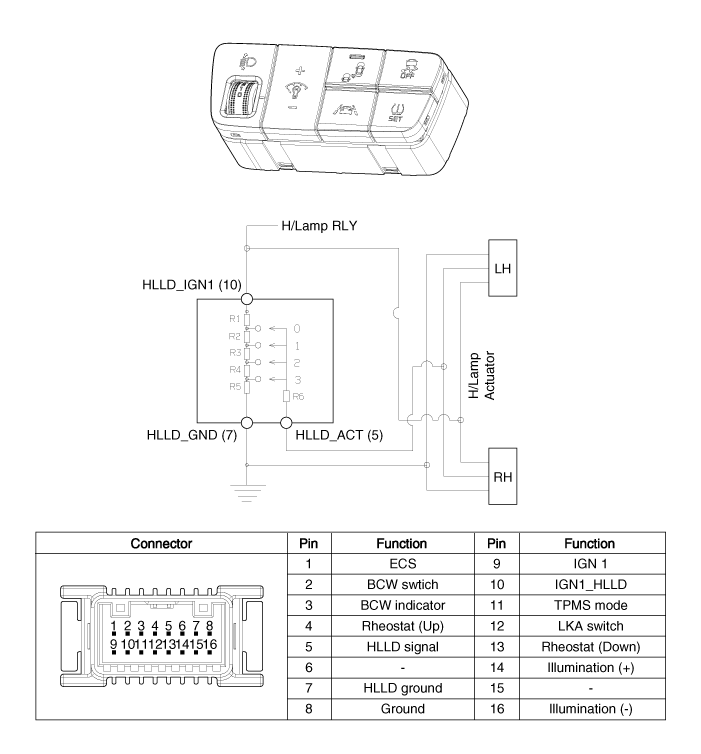

Circuit Diagram

Repair procedures
Removal
1.

Disconnect the negative (-) battery terminal.

2.

Remove the crash pad lower panel.

(Refer to Body - "Crash Pad Lower Panel")

3.

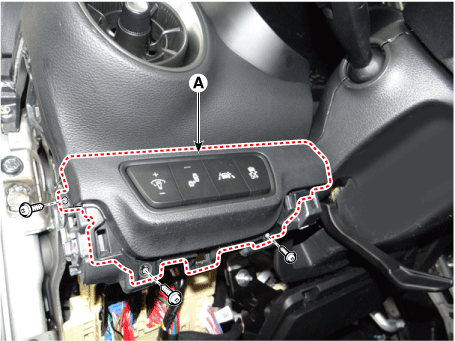

Remove the side crash pad switch panel (A) after loosening the screws.

4.

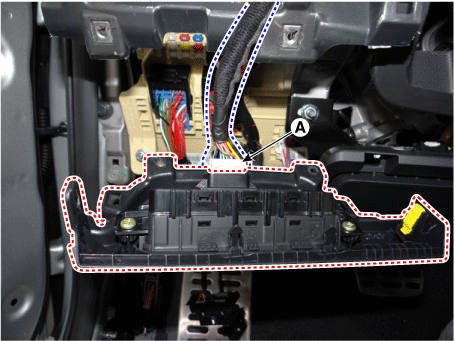

Disconnect the side crash pad switch connector (A).

5.

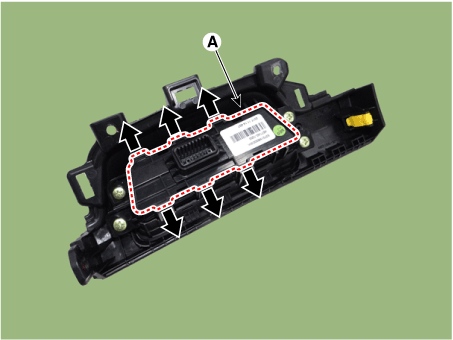

Remove the side crash pad switch (A) after opening the holder in the direction arrow.

Installation
1.

Install in the reverse order of removal.
