Kia Forte: Emission Control System
Kia Forte 2019-2021 (BD) Service Manual / Emission Control System
Service data
| Service Data |
Purge Control Solenoid Valve (PCSV)
▷ Specification
|
Item |
Specification |
|
Coil Resistance (Ω) |
22.0 - 26.0 [20°C(68°F)] |
Tightening torque
| Tightening Torques |
|
Item |
kgf·m |
N·m |
lb·ft |
|
Positive Crankcase Ventilation (PCV) Valve |
0.8 - 1.2 |
7.8 - 11.8 |
5.8 - 8.7 |
|
Canister mounting bolt / nut |
2.2 - 2.4 |
21.5 - 23.5 |
15.9 - 17.3 |
Components and components location
| Components Location |

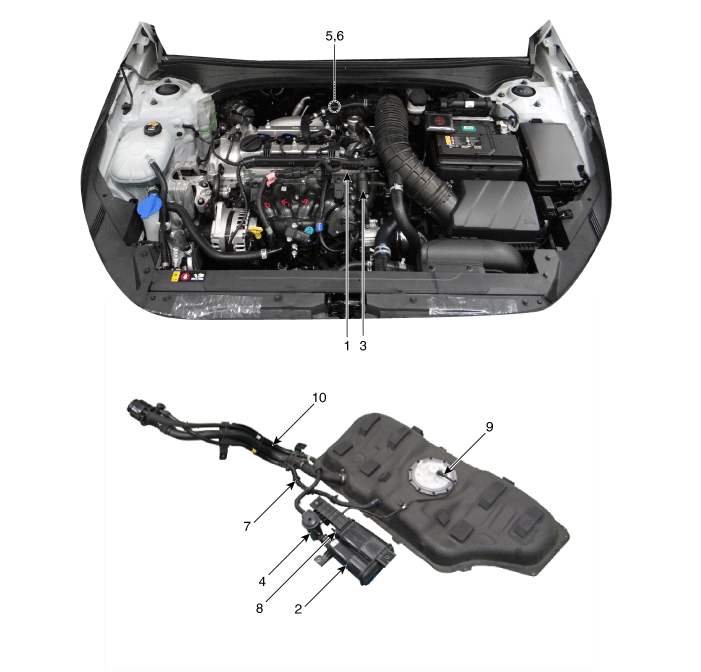

| 1. PCV Valve 2. Canister 3. Purge Control Solenoid Valve (PCSV) 4. Fuel Tank Air Filter 5. Catalytic Converter (WCC) |
6. Catalytic converter (UCC)

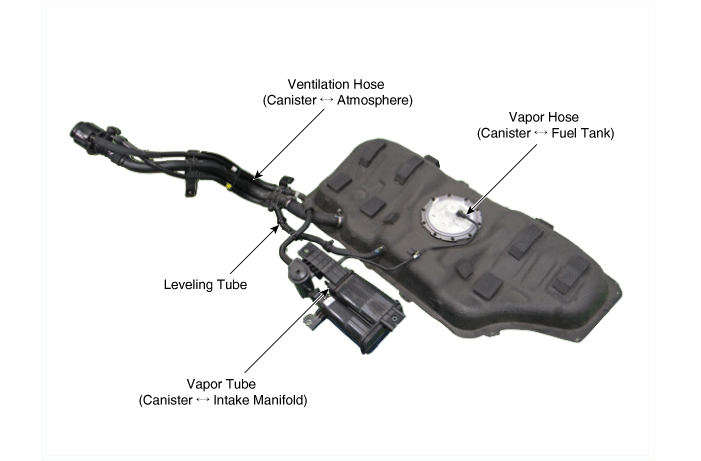

7. Leveling Tube 8. Vapor Tube (Canister ↔ Intake Manifold) 9. Vapor Tube (Canister ↔ Fuel Tank) 10. Ventilation Hose (Canister ↔ Atmosphere) |
|

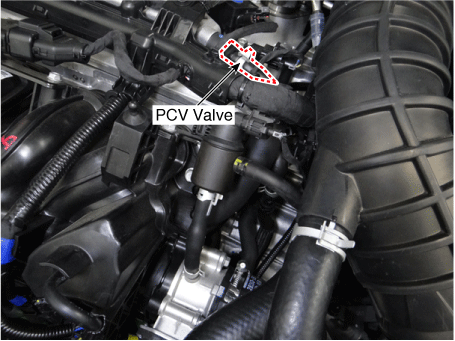

1. PCV Valve |

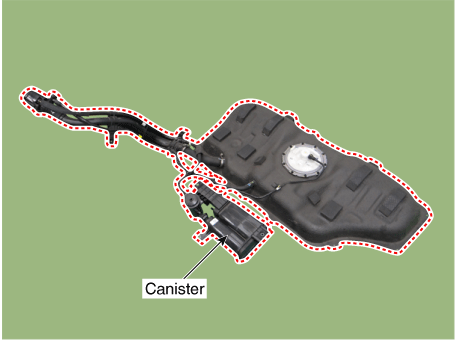

2. Canister |
|
|
|
|

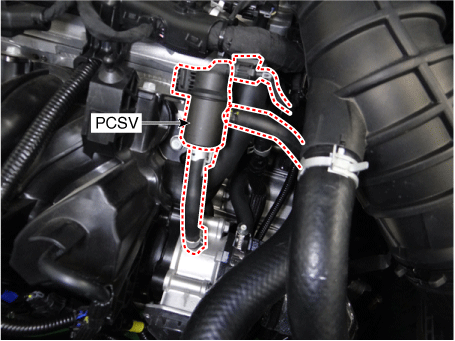

3. Purge Control Solenoid Valve (PCSV) |

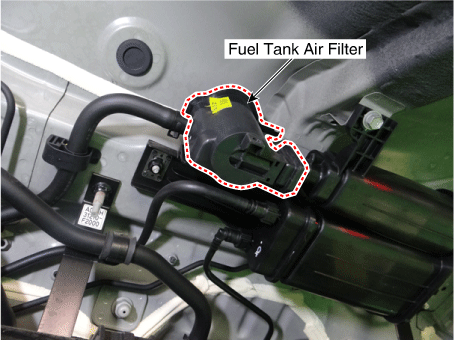

4. Fuel Tank Air Filter |
|
|
|
|

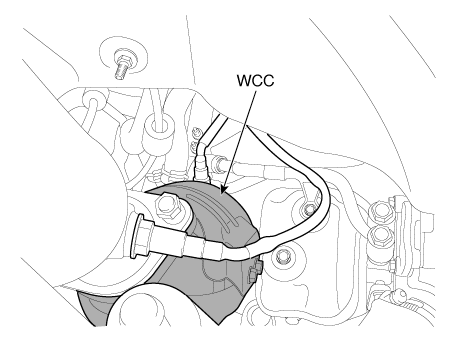

5. Catalytic Converter (WCC) |

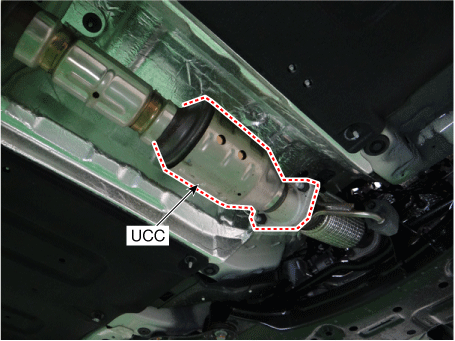

6. Catalytic Converter (UCC) |
|
|
|
|
7. Leveling Tube 8. Vapor Tube (Canister ↔ Intake Manifold) 9. Vapor Tube (Canister ↔ Fuel Tank) 10. Ventilation Hose (Canister ↔ Atmosphere) |
|
|
|
|
Description and operation
| Description |
Emissions Control System consists of three major systems.
| • |
Crankcase Emission Control System prevents blow-by gas from releasing into the atmosphere. This system recycles gas back into the intake manifold (Closed Crankcase Ventilation Type). |
| • |
Evaporative Emission Control System prevents evaporative gas from releasing into the atmosphere. This system burns gas at appropriate engine operating condition after gathering it in the canister. |
| • |
Exhaust Emission Control System converts the three pollutants [hydrocarbons (HC), carbon monoxide (CO), and oxides of nitrogen (NOx)] into harmless substances by using the 3-way catalytic converter. |
Schematic diagrams

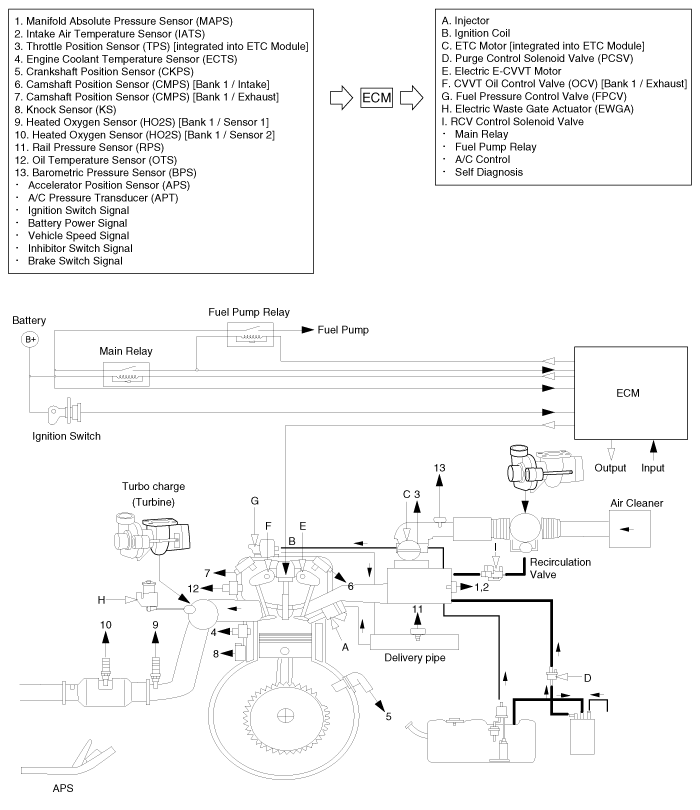

| Schematic Diagram |
Troubleshooting
| Troubleshooting |
|
Symptom |
Suspect area |
|
Engine will not start or stuggle to start |
Vapor hose damaged or disconnected |
|
Engine stuggle to start |
Malfunction of the Purge Control Solenoid Valve |
|
Rough idle or engine stalls |
Vapor hose damaged or disconnected |
|
Malfunction of the PCV valve |
|
|
Rough idle |
Malfunction of the Evaporative Emission Control System |
|
Excessive oil consumption |
Positive crankcase ventilation line clogged |
Smart Cruise Control (SCC) ECU
Schematic diagrams
Terminal Function
NO.
Terminal function
1
Ground
2
-
3
...
Crankcase Emission Control System
Schematic diagrams
Schematic Diagram
Repair procedures
Inspection
1.
After disconnecting the vapor hose from the PCV valve, remove the PCV
valve.
...
