Kia Forte: Emission Control System / Crankcase Emission Control System

Kia Forte 2019-2022 (BD) Service Manual / Emission Control System / Crankcase Emission Control System

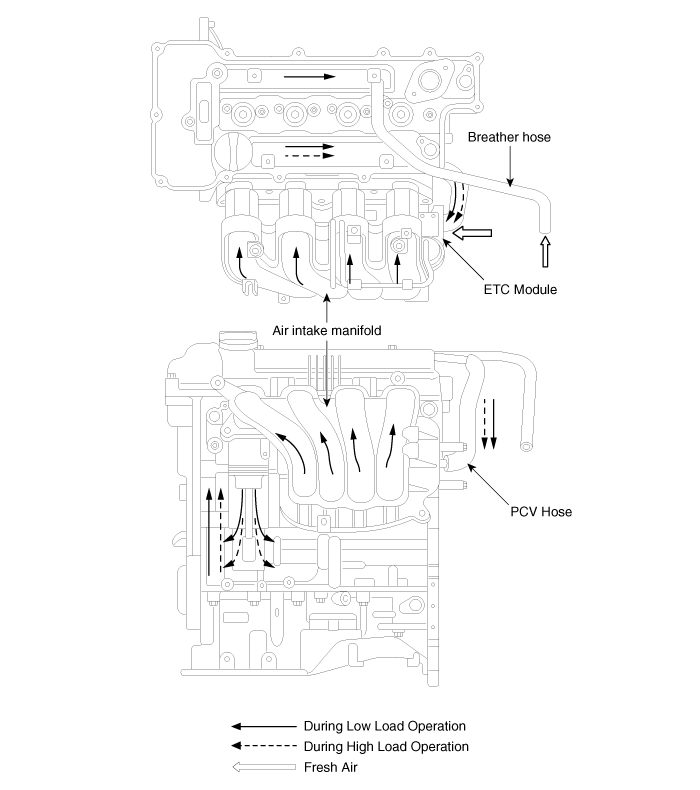

Schematic diagrams

Schematic Diagram

Repair procedures

Inspection

1.	After disconnecting the vapor hose from the PCV valve, remove the PCV valve.

2.	Reconnect the PCV valve to the vapor hose.

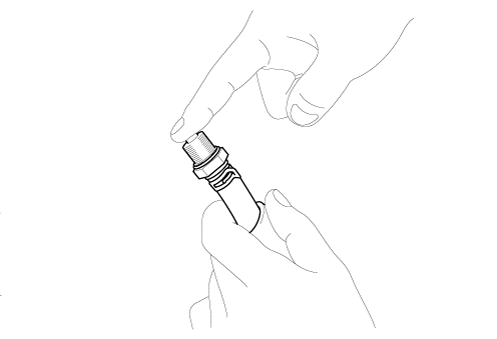

Inspect the PCV vlave operation.

(1)	Run the engine at idle.

(2)	Put a finger on the open end of the PCV valve.

(3)	Make sure that intake manifold vaccum can be felt.

The plunger inside the PCV valve will move back and forth at vacuum.

4.	If the vacuum is not felt, clean or replace the vapor hose.

Positive Crankcase Ventilation (PCV) Valve

Emission Control System

Service data Service Data Purge Control Solenoid Valve (PCSV) ▷ Specification Item Specification Coil Resistance (Ω) 22.0 - ...

Positive Crankcase Ventilation (PCV) Valve

Description and operation Operation Principle Repair procedures Removal 1. Disconnect the PCV hose (A). 2. Remove the PCV valve ...
