Kia Forte: Rear Door / Rear Door Side Weatherstrip

Kia Forte 2019-2021 (BD) Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Side Weatherstrip

Repair procedures
Replacement
1.

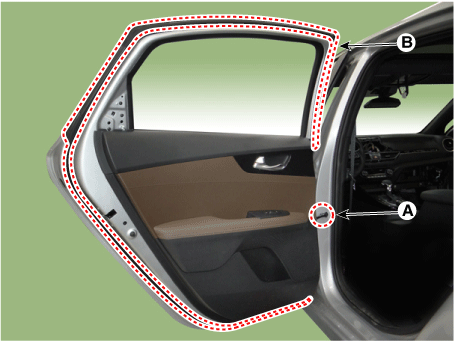

Loosen the rear door checker (A) mounting bolt.

Tightening torque :

16.7 - 21.6 N·m (1.7 - 2.2 Kgf·m, 12.3 - 15.9 lb·ft)

2.

Detach the clips, remove the rear door side weatherstrip (B).

3.

To install, reverse the removal procedure.



Replace any damaged clips.
