Kia Forte: Rear Door / Rear Door Belt Inside Weatherstrip

Kia Forte 2019-2024 (BD) Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Belt Inside Weatherstrip

Repair procedures

Replacement

1.	Remove the rear door trim. (Refer to Rear Door - "Rear Door Trim")

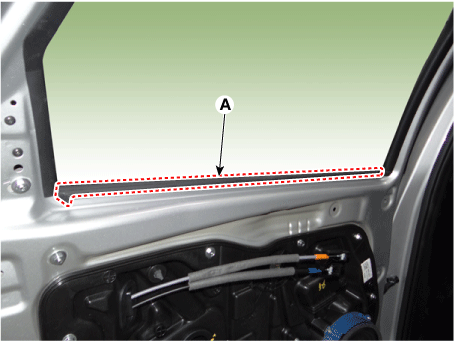

2.	Remove the rear door belt inside weatherstrip (A).

To install, reverse the removal procedure.

•	When installing, install it by first contacting the inside part (basis point of assembly) of arrow to door frame.

•	Replace any damaged clips.
