Kia Forte: Evaporative Emission Control System / Canister

Kia Forte 2019-2024 (BD) Service Manual / Emission Control System / Evaporative Emission Control System / Canister

Repair procedures
Removal and Installation
1.

Turn ignition switch OFF and disconnect the battery negative (-) terminal.

2.

Remove the fuel tank air filter.

(Refer to Evaporative Emission Control System - "Fuel Tank Air Filter")

3.

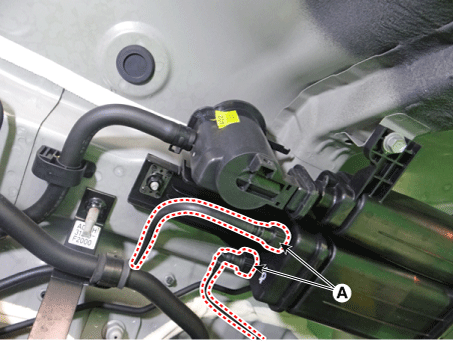

Disconnect the vapor hoses quick-connector (A).

4.

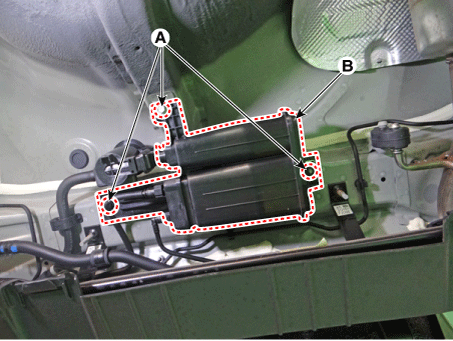

Remove the protector installation bolt & nuts (A) and then remove the canister (B).

Tightening torque :

21.5 - 23.5 N·m (2.2 - 2.4 kgf·m, 15.9 - 17.3 lb·ft)

5.

Install in the reverse order of removal.

Inspection
1.

Check for the following items visually.

Cracks or leakage of the canister

Loose connection, distortion, or damage of the vapor hose/tube

A: Canister ↔ Atmosphere

B: Canister ↔ Intake Manifold

C: Canister ↔ Fuel Pump
