Kia Forte: Evaporative Emission Control System / Fuel Tank Air Filter

Kia Forte 2019-2021 (BD) Service Manual / Emission Control System / Evaporative Emission Control System / Fuel Tank Air Filter

Repair procedures

Removal and Installation

1.	Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

2.	Lift the vehicle.

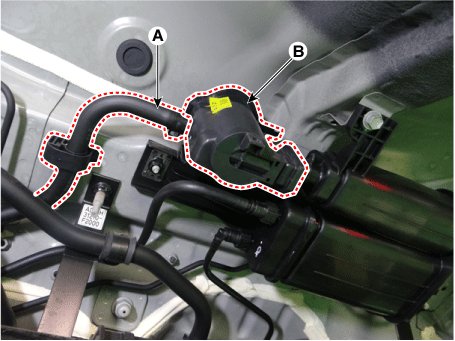

3.	Disconnect the ventilation hose(A).

4.	Remove the fuel tank air filter (B) after removing the bolt.

5.	Install in the reverse order of removal.
