Kia Forte: Rear Seat / Rear Seat Cushion Cover

Kia Forte 2019-2024 (BD) Service Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Cushion Cover

Components and components location

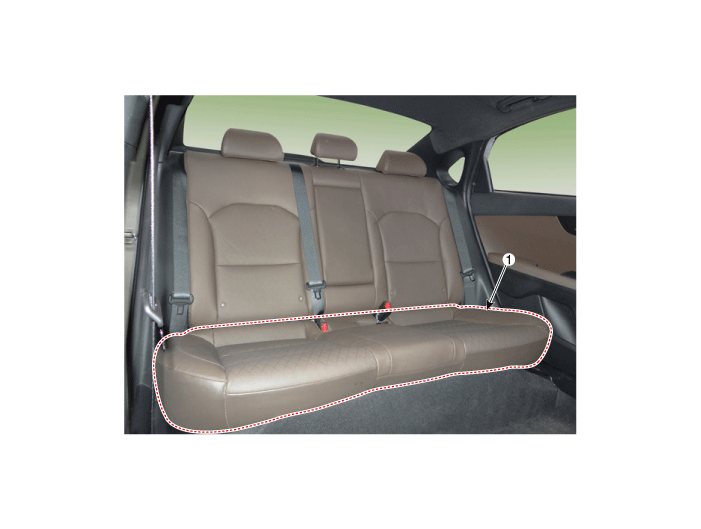

Component Location

1. Rear seat cushion cover


Repair procedures
Replacement


Put on gloves to prevent hand injuries.



When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.

Take care not to bend or scratch the trim and panels.

1.

Remove the seat cushion assembly.

(Refer to Rear Seat - "Rear Seat Assembly")

2.

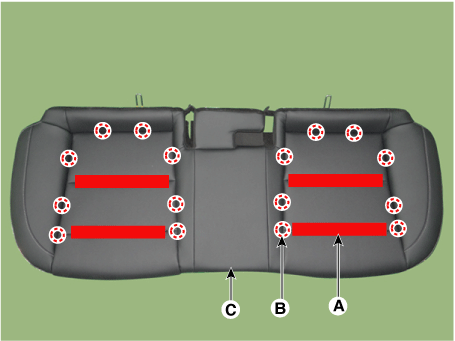

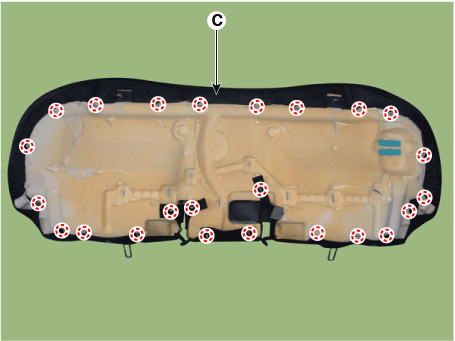

After removing the velcro tape (A) and hog-ring clips (B) inside the rear seat cushion cover, remove the seat cushion covering (C).

[Front side]

[Rear side]

3.

To install, reverse the removal procedure.



Make sure that the connectors are connected completely.

Replace any damaged clips (or pin - type retainers).

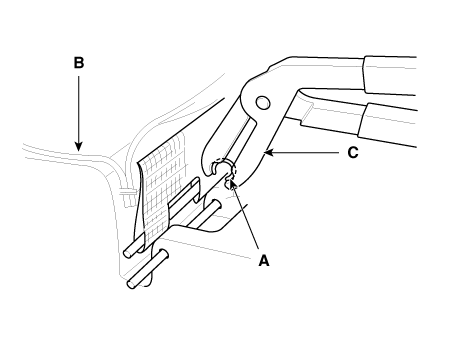

To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog - ring clips (A).

Replace the hog-ring clips with new ones using special tool (C) (09880 - 4F00009880 - 4F000).
