Components and components location
Components

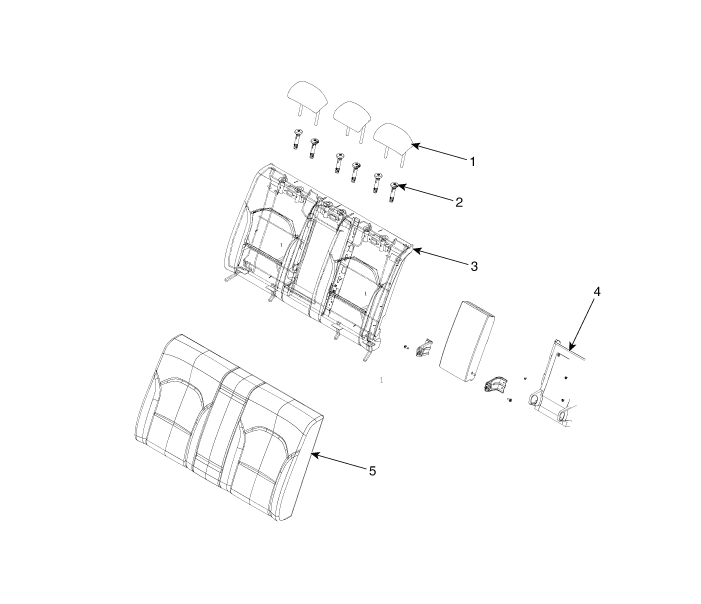

[Rear seat bench type]

1. Rear seat headrest
2. Rear seat headrest guide
3. Rear seat back frame & Pad
4. Rear back armrest & Board
5. Rear seat back covering

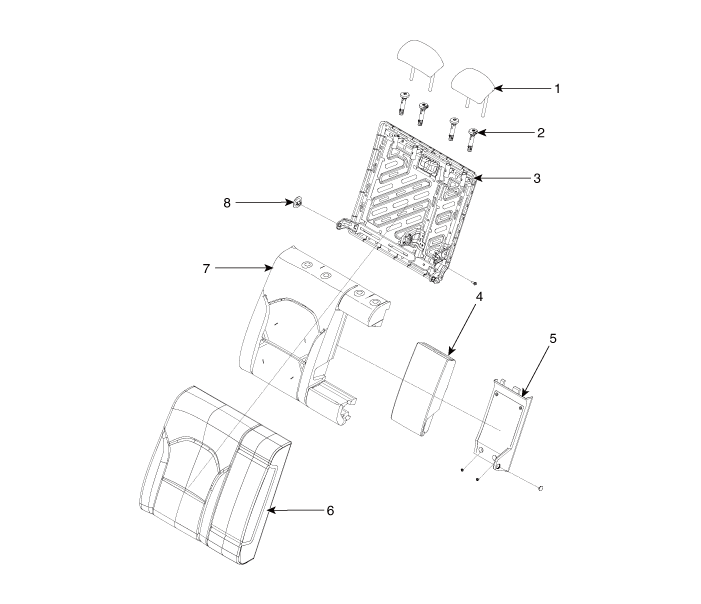

[Rear seat 6:4 folding type]

(RH)

1. Rear seat headrest
2. Rear seat headrest guide
3. Rear seat back frame
4. Rear back armrest
5. Rear back armrest board
6. Rear seat back covering
7. Rear seat back pad
8. Rear seat back bush hinge

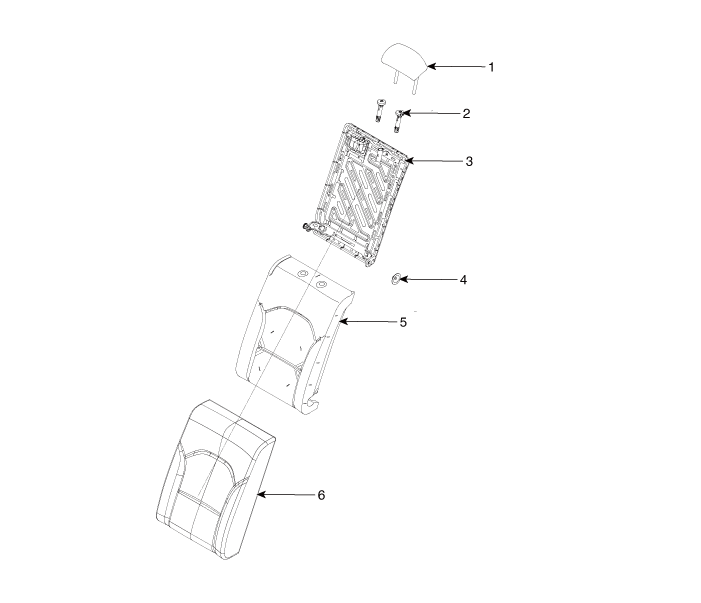

(LH)

1. Rear seat headrest
2. Rear seat headrest guide
3. Rear seat back frame

4. Rear seat back bush hinge
5. Rear seat back pad
6. Rear seat back covering

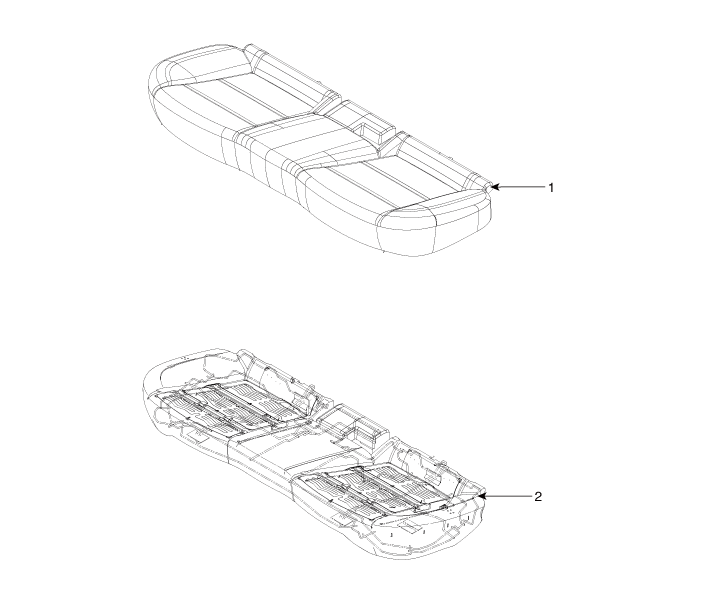

Rear seat cushion assembly

1. Rear seat cushion covering
2. Rear seat cushion frame & Pad

Front Seat Frame Assembly
