Kia Forte: Rear Seat / Rear Seat Folding Lever

Kia Forte 2019-2021 (BD) Service Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Folding Lever

Components and components location

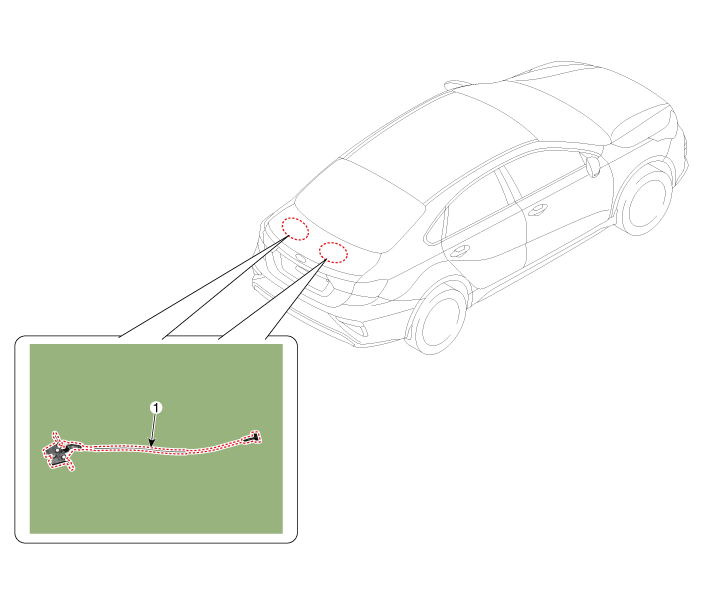

Components

1. Rear seat folding lever


Repair procedures
Replacement
1.

Remove the seat assembly.

(Refer to Rear Seat - "Rear Seat Assembly")

2.

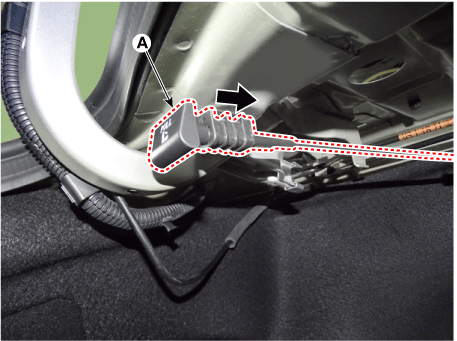

Pull the folding lever (A) in the direction of the arrow and remove it from the body.

3.

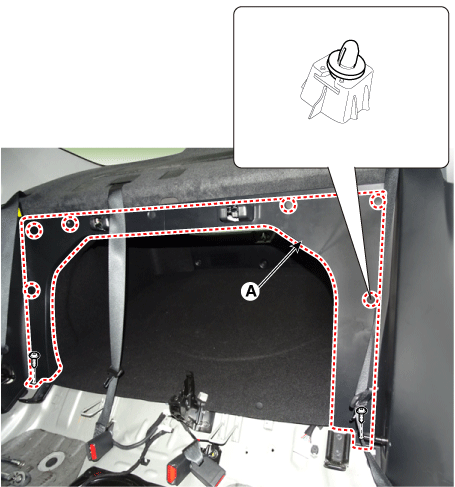

After loosening the mounting clips, remove the rear partition trim (A).

4.

Loosen the mountung bolts, remove the rear seat folding lever (A).

5.

To install, reverse the removal procedure.
