Kia Forte: Roof Trim / Assist Handle
Components and components location
Repair procedures
|
Put on gloves to prevent hand injuries.
|
| • |
When removing with a flat-tip screwdriver or remover, wrap protective
tape around the tools to prevent damage to components.
|
| • |
When removing the interior trim pieces, use a plastic panel removal
tool not to damage the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |

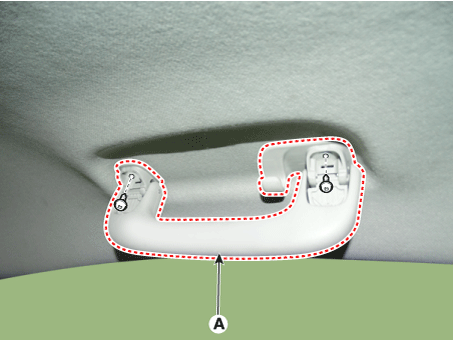

After lifting up the assist handle caps and loosening the mounting screws,
remove the assist handle (A).
|
| 2. |
To install, reverse the removal procedure.
|
Components and components location
Component Location
1. Sunvisor
2. Retainer
Repair procedures
Replacement
& ...
Components and components location
Component Location
1. Roof Trim Assembly
Repair procedures
Replacement
&nb ...
