Kia Forte: Body (Interior and Exterior) / Tailgate

Kia Forte 2019-2021 (BD) Service Manual / Body (Interior and Exterior) / Tailgate

Repair procedures
Adjustment
1.

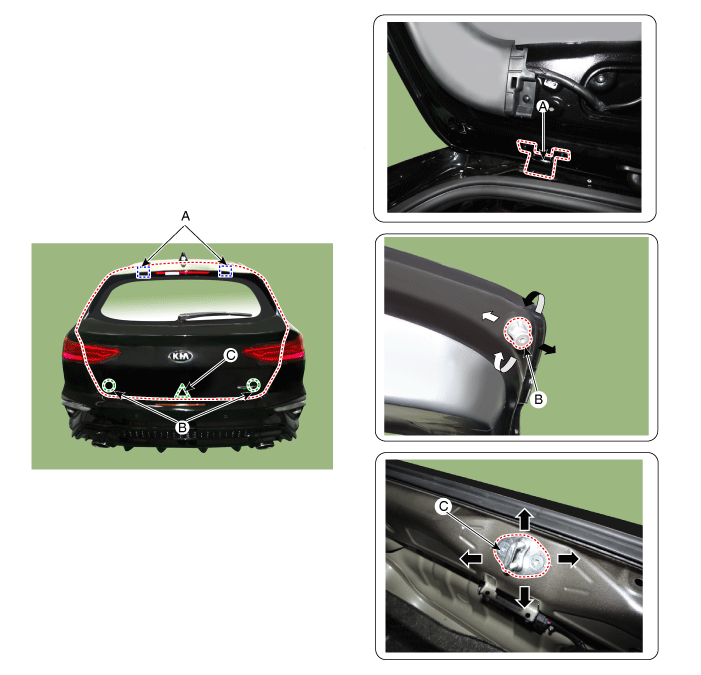

After loosening the tailgate hinge (A) mounting bolt, adjust the tailgate by moving it up or down, or right or left.

2.

Adjust the tailgate height by turning the tailgate overslam bumpers (B).

3.

After loosening the tailgate striker (C) mounting bolts, adjust the tailgate striker by moving it up or down, or right or left.
