Kia Forte: Body (Interior and Exterior) / Hood

Kia Forte 2019-2020 (BD) Service Manual / Body (Interior and Exterior) / Hood

Repair procedures
Adjustment
1.

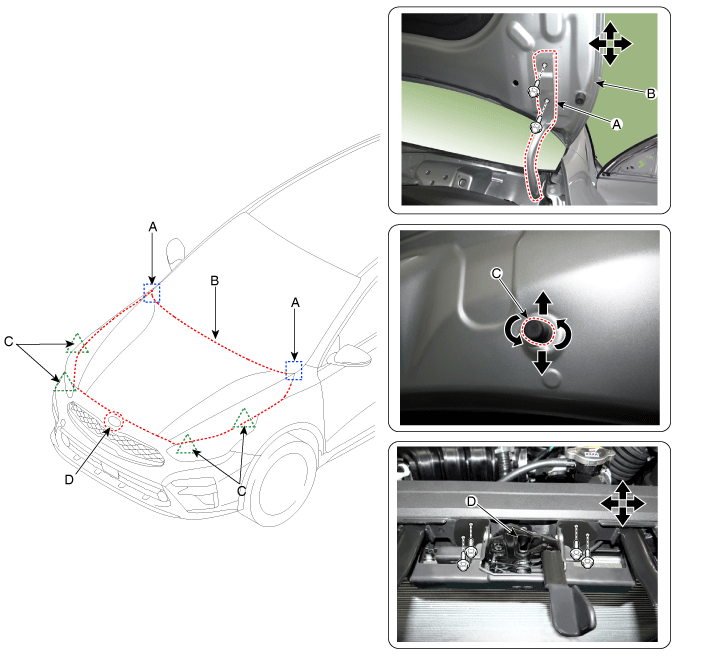

After loosening the hinge (A) mounting bolt, adjust the hood (B) by moving it up and down or from side to side and tighten the bolt.

2.

Adjust the hood height by moving the hood overslam bumpers (C) up and down.

3.

After loosening the hood latch (D) mounting bolts, adjust the latch by moving it up and down or from side to side.
