Kia Forte: Hood / Hood Latch Release Handle

Kia Forte 2019-2020 (BD) Service Manual / Body (Interior and Exterior) / Hood / Hood Latch Release Handle

Components and components location

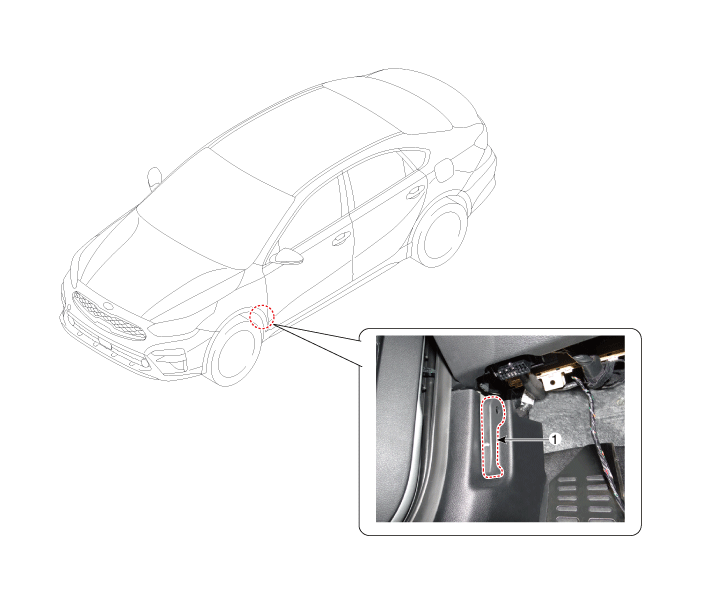

Component Location

1. Hood latch release handle


Repair procedures
Replacement
1.

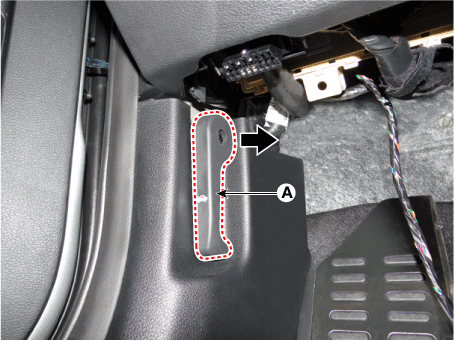

Remove the hood release handle (A).

2.

To install, reverse the removal procedure.



Make sure the hood latch cable is connected properly.

Make sure the hood locks / unlocks and opens / closes properly.

Hood Insulator Pad
Repair procedures Replacement 1. Using a clip remover, remove the clips and then the hood insulator pad (A).    ...

Hood Latch
Components and components location Component Location 1. Hood latch assembly Repair procedures Replacement [Hood lower latch assembly] ...
