Kia Forte: Hood / Hood Assembly

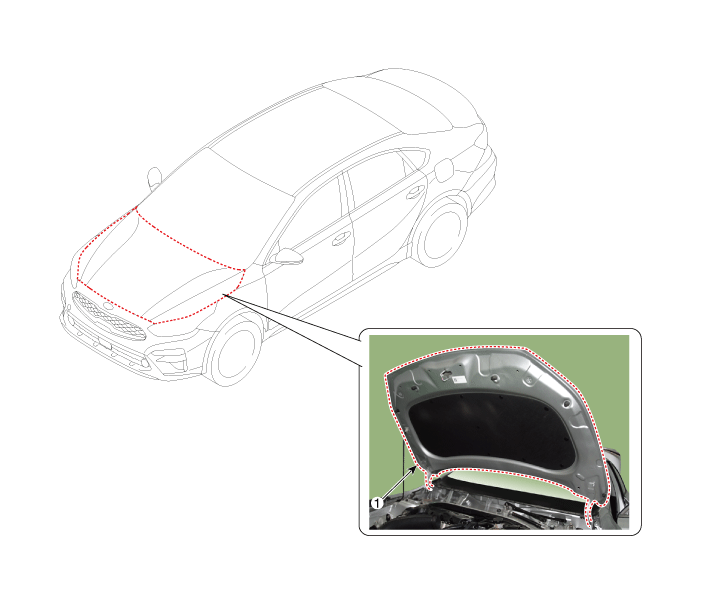

Components and components location
Repair procedures
|
Be careful not to damage the hood and body.
|
| • |
Removing or installing the hood requires an assistant.
|
| • |
When removing the clips, use a clip remover.
|
|
| 1. |

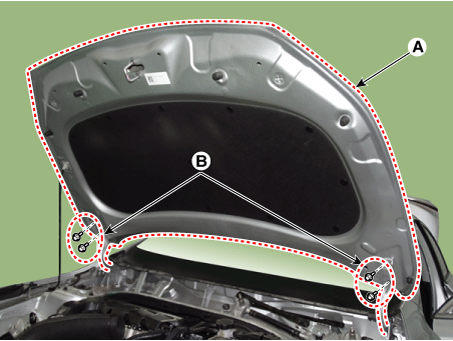

After loosening the hood hinge (B) mounting bolts, remove the hood assembly
(A).
|
Tightening torque :
20.6 - 27.5 N·m (2.1 - 2.8 Kgf·m, 15.2 - 20.3 lb·ft)
|
|
| 2. |
To install, reverse the removal procedure.
| •
|
Make sure the hood locks / unlocks and opens / closes
properly.
|
| •
|
Adjust the hood alignment.
|
|
|
Repair procedures
Adjustment
1.
After loosening the hinge (A) mounting bolt, adjust the hood (B) by moving
it up and down or from side to side and tighten the bolt.
...
Repair procedures
Replacement
1.
Using a clip remover, remove the clips and then the hood insulator pad
(A).
...
