Kia Forte: Fuel Delivery System / Fuel Sender

Kia Forte 2019-2022 (BD) Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Sender

Repair procedures
Inspection

Fuel Sender

1.

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

2.

Remove the fuel pump assembly.

3.

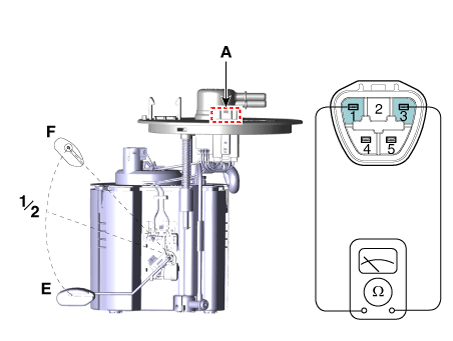

Using an ohmmeter, measure the resistance between terminals 1 and 3 of sender connector (A) at each float level.

Pin No.
Description
1
Fuel sender ground (-)
2
 -
3
Fuel sender signal (+)
4
Fuel pump motor (+)
5
Fuel pump motor (-)

4.

Also check that the resistance changes smoothly when the float is moved from "E" to "F".

Position
Resistance(Ω)
Capacity (ℓ)
E
298 - 305
2.7
 1/2
85.5 - 87.5
23.4
F
14 - 16
44.1

Removal and Installation
1.

Remove the fuel pump.

(Refer to Fuel Delivery System - “Fuel Pump”)

2.

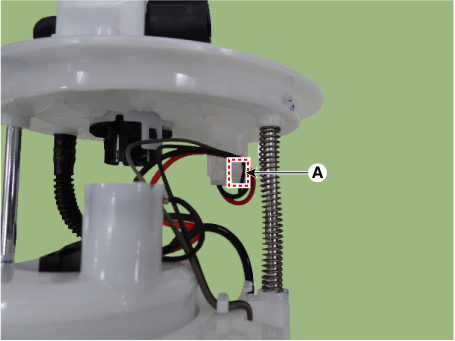

Disconnect the fuel sender connector (A).

3.

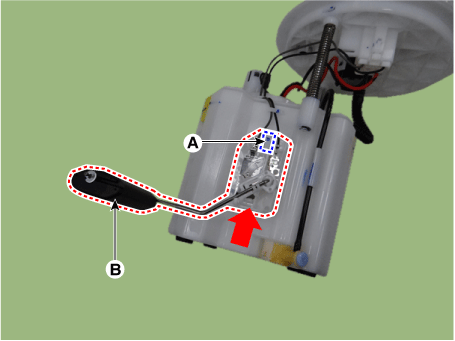

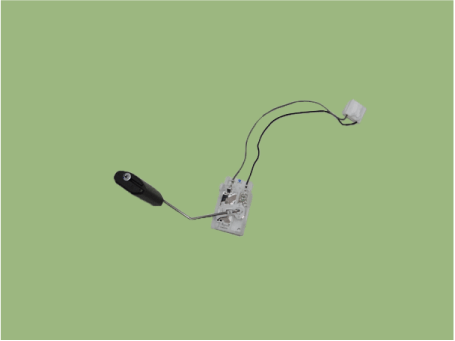

Press the fixing hook (A) with a driver and then remove fuel sender (B) in the arrow direction.

4.

Install in the reverse order of removal.
