Kia Forte: Fuel Delivery System / Fuel Pump Motor

Kia Forte 2019-2023 (BD) Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Pump Motor

Repair procedures
Removal and Installation
1.

Remove the fuel pump.

(Refer to Fuel Delivery System - “Fuel Pump”)

2.

Remove the fuel sender.

(Refer to Fuel Delivery System - "Fuel Sender")

3.

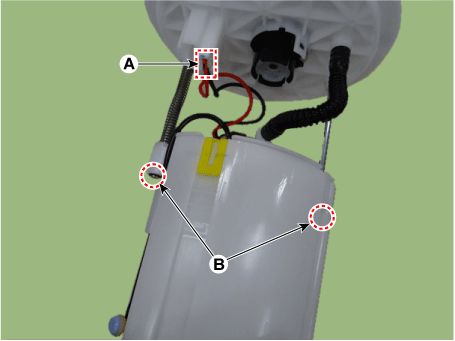

Disconnect the fuel pump motor connector (A).

4.

Remove the head assembly after releasing the cushion fixing hooks (B).

5.

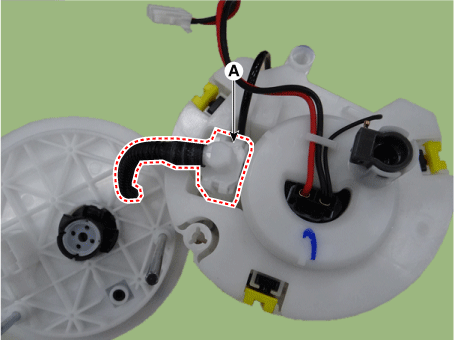

Disconnect the fuel feed tube (A).

6.

Remove the return nozzle (A) after releasing the hook.

7.

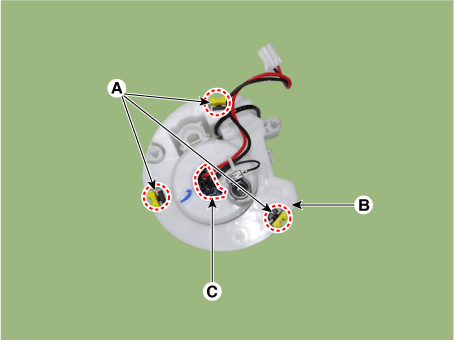

Remove the reservior-cup (B) after releasing the fixing hooks (A).

8.

Disconnect the fuel pump motor connector (C).

9.

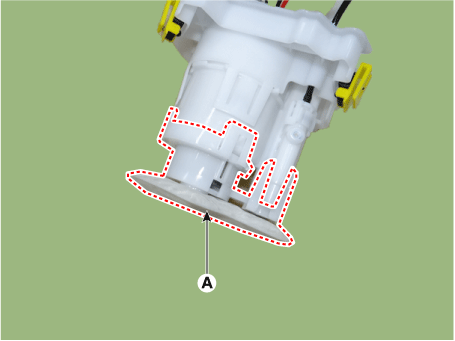

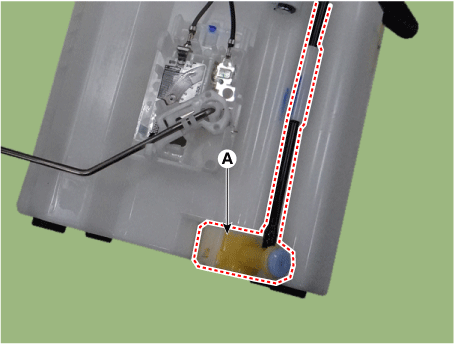

Release the fixing hooks, and then remove the pre-filter (A).

10.

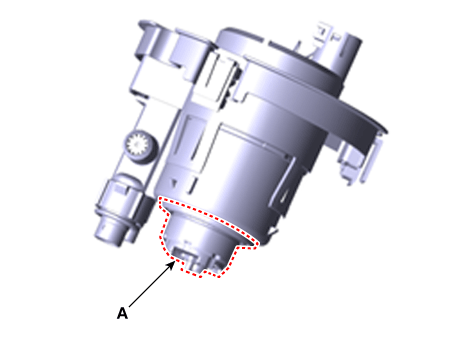

Remove the fuel pump motor (A) from the fuel filter.

11.

Install in the reverse order of removal.
