Kia Forte: Body (Interior and Exterior) / Fender

Kia Forte 2019-2021 (BD) Service Manual / Body (Interior and Exterior) / Fender

Components and components location

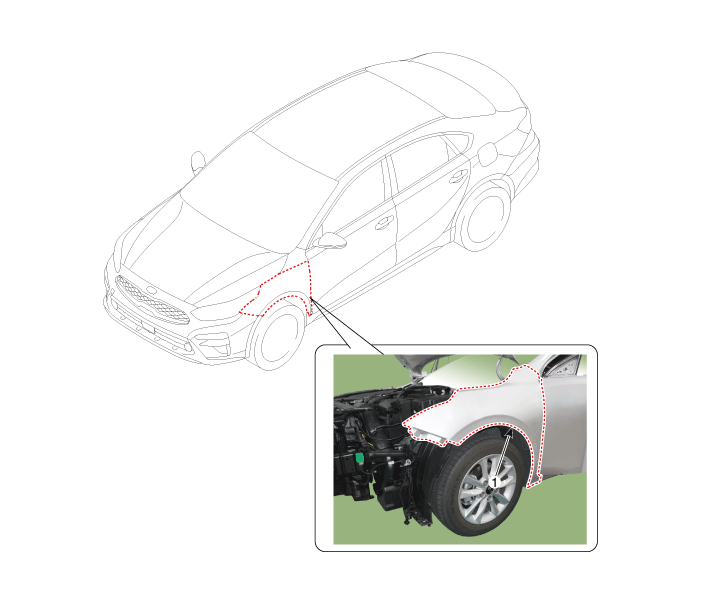

Component Location

1. Fender assembly


Repair procedures
Replacement


When removing the fender, wrap protective tape around a screwdriver or remover not to damage components

Put on gloves to prevent hand injuries



When removing the clips, use a clip remover.

1.

Remove the front bumper assembly.

(Refer to Front Bumper - "Front Bumper Assembly")

2.

Remove the head lamps.

(Refer to Body Electrical System - "Head Lamps")

3.

Remove the side seal molding.

(Refer to Body Side Molding - "Side Seal Molding")

4.

Remove the front wheel guard.

(Refer to Body Side Molding - "Front Wheel Guard")

5.

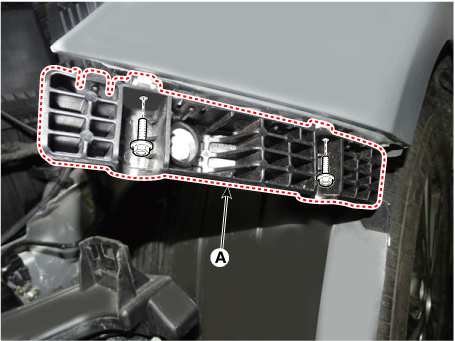

Remove the front bumper side mounthing bracket (A) after loosening the bolts.

6.

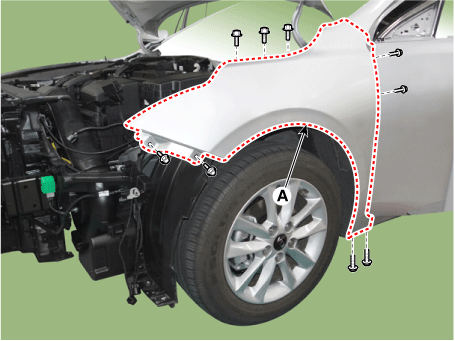

After loosening the mounting bolts, remove the fender assembly (A).

7.

To install, reverse the removal procedure.



Make sure the connector is plugged in properly.

Replace any damaged clips (or pin - type retainers).
