Components and components location

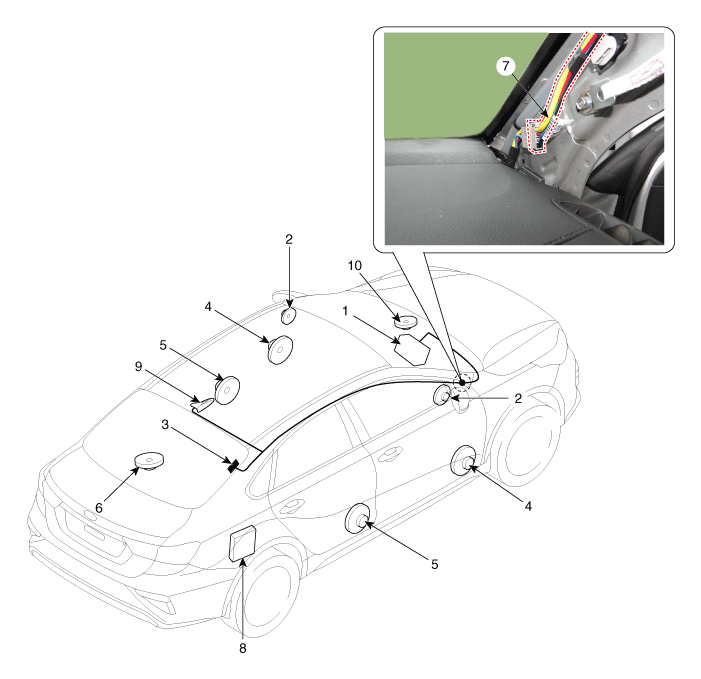

Component Location
[4DR]

1. Audio head unit
2. Tweeter speaker
3. Glass antenna amplifier
4. Front door speaker
5. Rear door speaker
6. Subwoofer speaker (Option)
7. Antenna feeder cable
8. External amplifier (Option)
9. Roof antenna (Option)
10. Crash pad center speaker

[5DR]

1. Audio head unit
2. Front tweeter speaker
3. Glass antenna amplifier
4. Front door speaker
5. Rear door speaker
6. Subwoofer speaker (Option)
7. Antenna feeder cable
8. External amplifier (Option)
9. Roof antenna (Option)
10. Crash pad center speaker
