Kia Forte: Audio / Multimedia Jack

Kia Forte 2019-2021 (BD) Service Manual / Body Electrical System / Audio / Multimedia Jack

Schematic diagrams

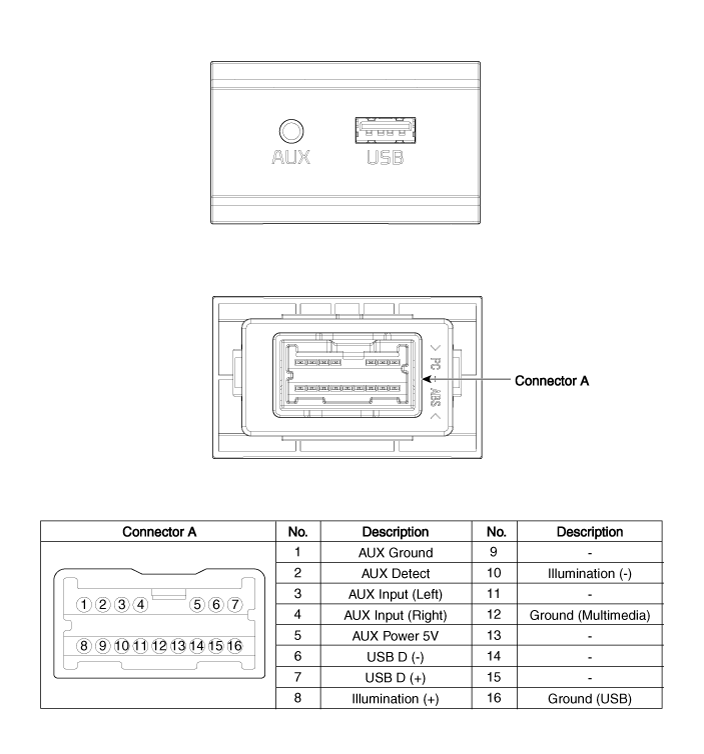

Circuit Diagram

Description and operation

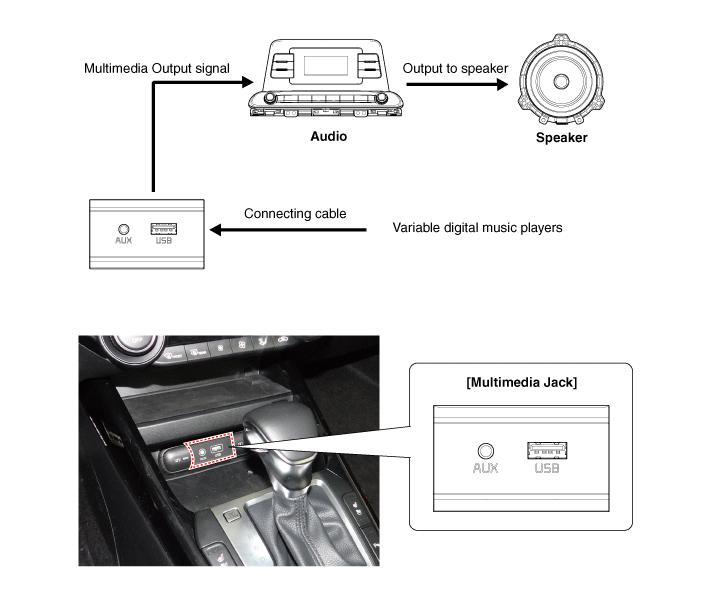

Description

The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP 3 etc., through the vehicle's sound system when it is linked to this jack. The customer has this added option.

In case of a stored level of the AUX-linked advanced music players, the audio unit does not have the power.

Repair procedures
Removal


When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

1.

Disconnect the negative (-) battery terminal.

2.

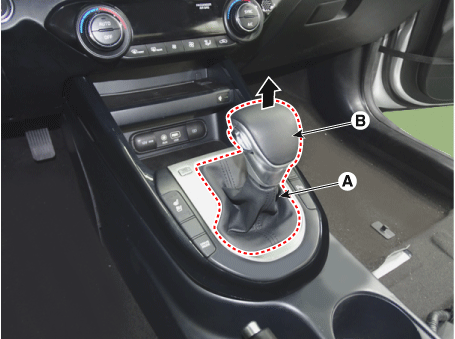

Remove the knob (B) by pulling them in the direction of the arrow after separating the boots (A) from the console upper cover.

3.

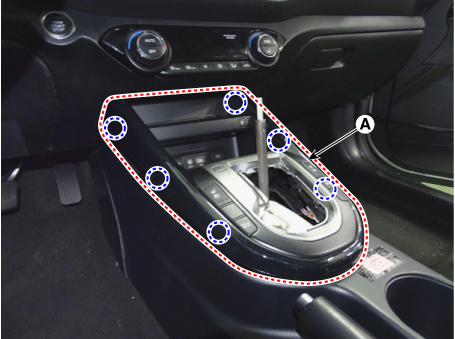

Remove console upper cover (A).

4.

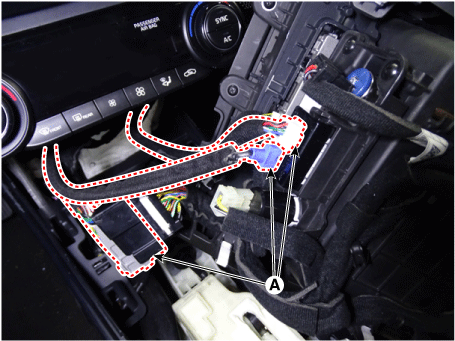

Disconnect the connector (A) from console upper cover.

5.

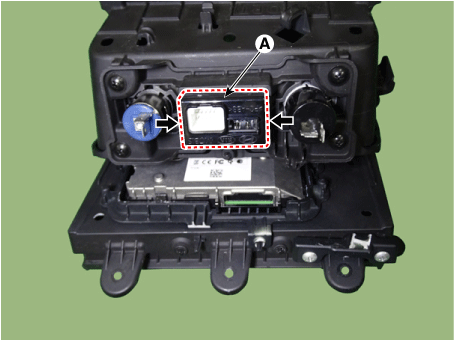

Remove the multimedia jack (A) after releasing the fixed hooks.

Installation
1.

Install in the reverse order of removal.
