Kia Forte: Audio / Steering Wheel Remote Controller (SWRC)

Kia Forte 2019-2024 (BD) Service Manual / Body Electrical System / Audio / Steering Wheel Remote Controller (SWRC)

Components and components location

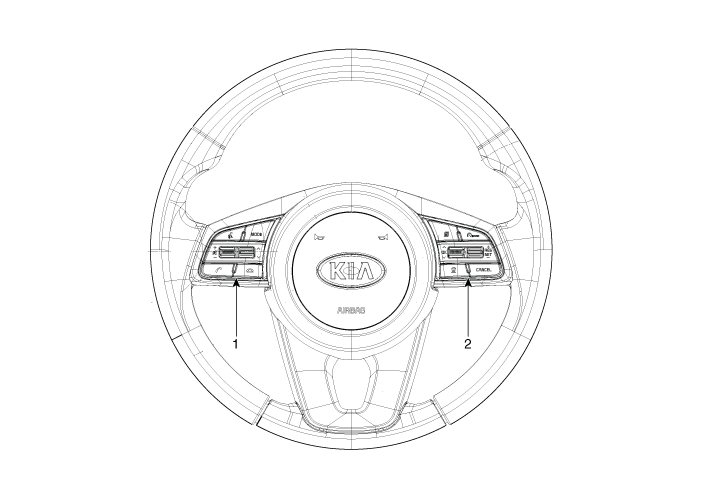

Components

1. Left remote control switch (Audio + Bluetooth + Voice)
2. Right remote control switch (Trip Computer + SCC)

Schematic diagrams
Circuit Diagram

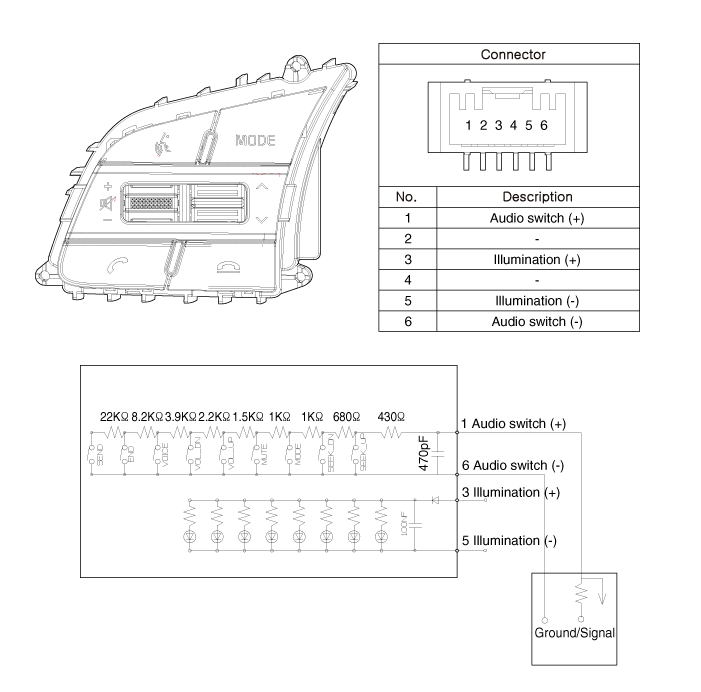

[Audio + Bluetooth + Voice]

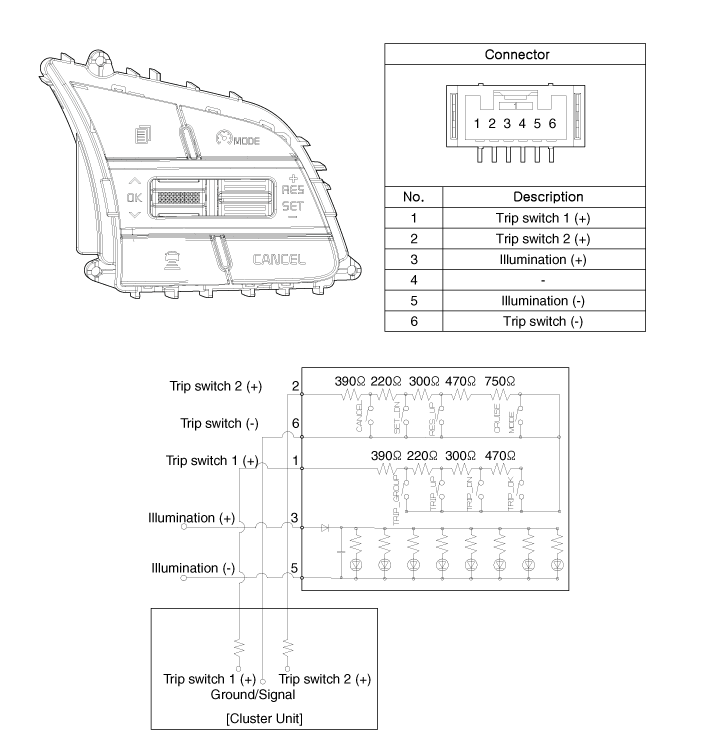

[Trip + SCC]

Repair procedures
Removal
1.

Disconnect the negative (-) battery terminal.

2.

Remove the steering wheel assembly.

(Refer to Steering System - "Steering Wheel")

3.

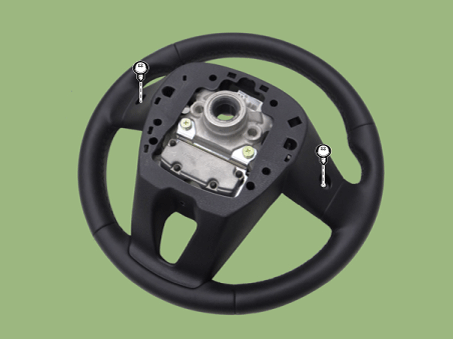

Remove the steering wheel bezel assembly (A) after loosening the mounting screws.

4.

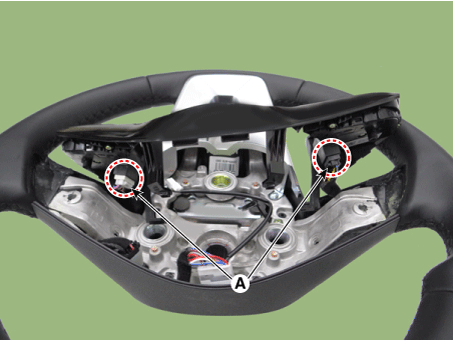

Disconnect the connector (A) from steering wheel remote control.

5.

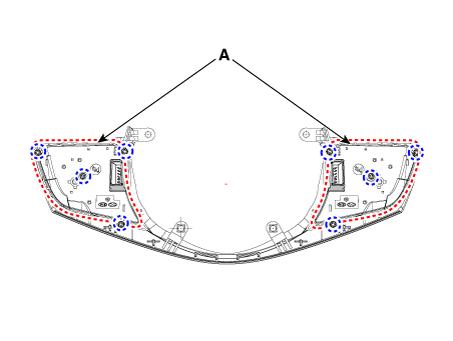

Remove the steering wheel remote control (A) from bezel after loosening the screws.

Installation
1.

Install in the reverse order of removal.

Inspection
1.

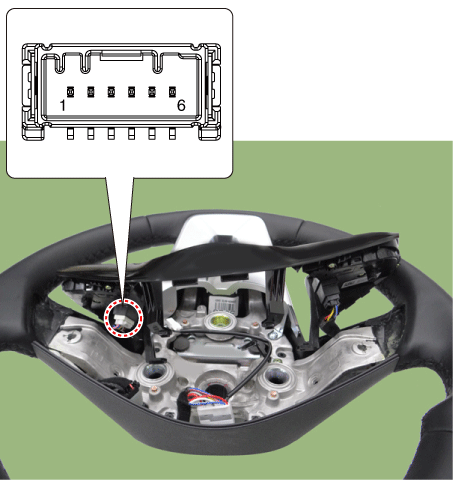

Check for resistance between terminals in each switch position (LH).

[Audio + Bluetooth + Voice]

Switch
Connector terminal
Resistance (±3%)
SEEK Up
1-6
430 Ω
SEEK Down
1.11 kΩ
MODE
2.11 kΩ
MUTE
3.11 kΩ
Volume (+)
4.61 kΩ
Volume (-)
6.81 kΩ
Voice
10.71 kΩ
END
18.91 kΩ
SEND
40.91 kΩ

2.

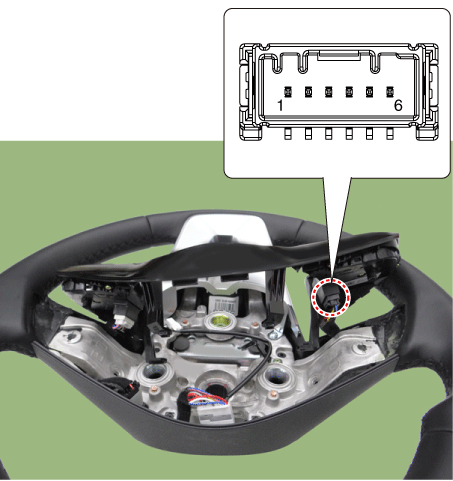

Check for resistance between terminals in each switch position (RH).

[Cruise]

Switch
Connector terminal
Resistance (±3%)
Cancel
2- 6
390 Ω
SET -
610 Ω
RES +
910 Ω
Cruise ON/OFF
1.38 kΩ
Cruise & Speed Limit ON/OFF
2.13 kΩ
SCC (Following distance control)
3.63 kΩ

[Trip]

Switch
Connector terminal
Resistance (±3%)
Group
1 - 6
390 Ω
Trip Up
610 Ω
Trip Down
910 Ω
Trip ON / Reset
1.38 kΩ
