Kia Forte: Audio / External AMP

Kia Forte 2019-2021 (BD) Service Manual / Body Electrical System / Audio / External AMP

Components and components location
Components Location

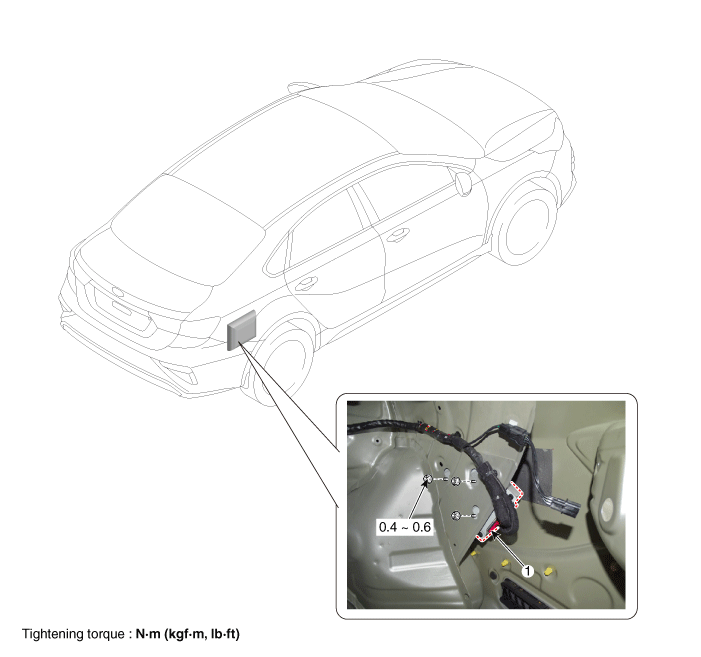

1. Amplifier assembly


Schematic diagrams
Connector and Terminal function

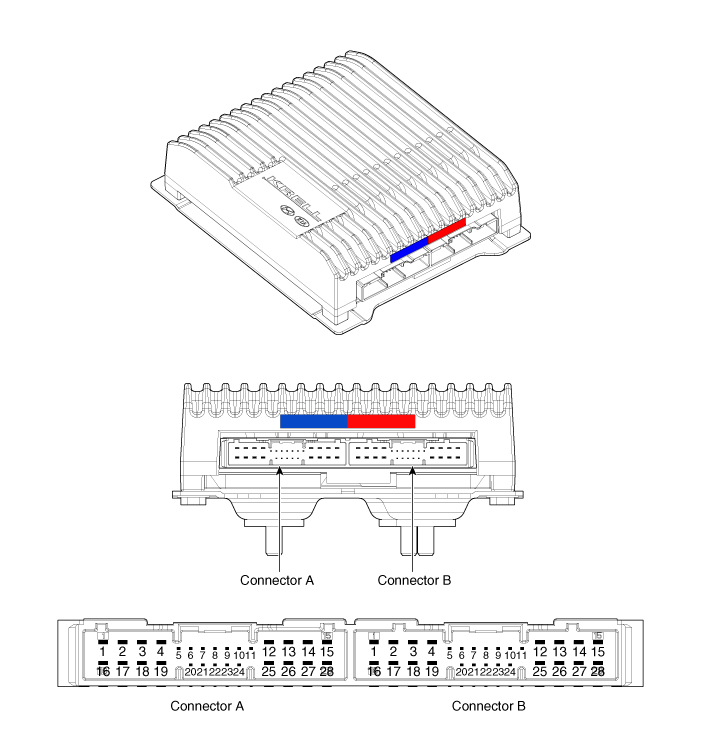

[KRELL]

No.
Connector A
Connector B
1
Battery (+)
Rear door left speaker (+)
2
Battery (+)
Rear door left speaker (-)
3
Battery (+)
Rear door right speaker (+)
4
Battery (+)
Rear door right speaker (-)
5
-
-
6
Multimedia-CAN (High)
-
7
Multimedia-CAN (Low)
-
8
ACC
-
9
Amplifier navigation voice (+)
-
10
-
-
11
-
-
12
Front door left speaker (+)
-
13
Front door left speaker (-)
-
14
Front door right speaker (+)
-
15
Front door right speaker (-)
-
16
Ground
Subwoofer speaker (+)
17
Ground
Subwoofer speaker (-)
18
Ground
Front center speaker (+)
19
Ground
Front center speaker (-)
20
Amplifier SPDIF (+)
-
21
Amplifier SPDIF (-)
-
22
Amplifier shield (Ground)
-
23
Amplifier navigation voice (-)
-
24
IGN1
-
25
Front door left tweeter speaker (+)
-
26
Front door left tweeter speaker (-)
-
27
Front door right tweeter speaker (+)
-
28
Front door right tweeter speaker (-)
-

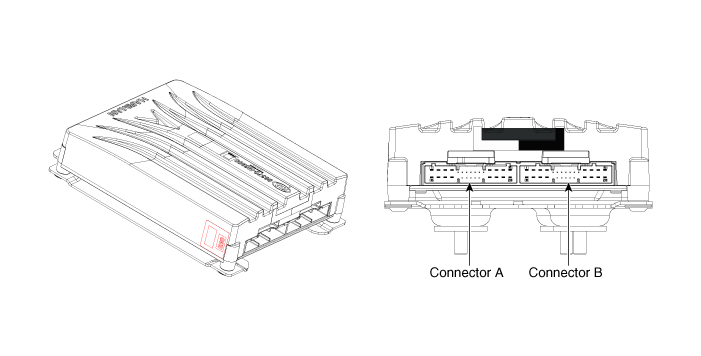

[Harman]

No.
Connector A
Connector B
1
Battery (+)
Subwoofer speaker 2 (+)
2
Battery (+)
Subwoofer speaker 1 (+)
3
Battery (+)
Front door right tweeter speaker (+)
4
Battery (+)
Front door left tweeter speaker (+)
5
-
-
6
Multimedia-CAN (High)
-
7
Multimedia-CAN (Low)
-
8
ACC
-
9
Amplifier navigation voice (+)
-
10
-
-
11
-
-
12
-
Rear door right speaker (+)
13
-
Rear door left speaker (+)
14
-
Front center speaker (+)
15
-
-
16
Ground
Subwoofer speaker 2 (-)
17
Ground
Subwoofer speaker 1 (-)
18
Ground
Front door right tweeter speaker (-)
19
Ground
Front door left tweeter speaker (-)
20
Amplifier SPDIF (High)
-
21
Amplifier SPDIF (Low)
-
22
Amplifier SPDIF (Ground)
-
23
Amplifier navigation voice (-)
-
24
-
-
25
-
Rear door right speaker (-)
26
-
Rear door left speaker (-)
27
-
Front center speaker (-)
28
-
-

Repair procedures
Removal
[4DR]
1.

Disconnect the negative (-) battery terminal.

2.

Remove the luggage side trim [RH].

(Refer to Body - "Luggage Side Trim")

3.

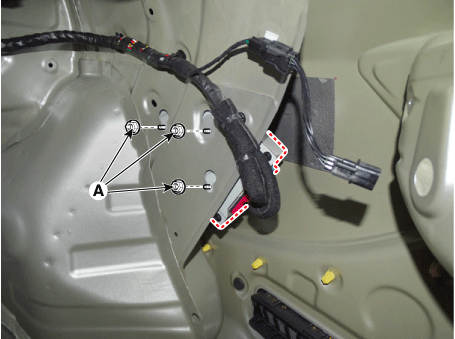

Loosen the nuts (A) from amplifier.

Tightening torque :

3.9 - 5.8 N·m (0.4 - 0.6 kgf·m, 2.8 - 4.3 lb·ft, 34.7 - 52.0 lb·in)

4.

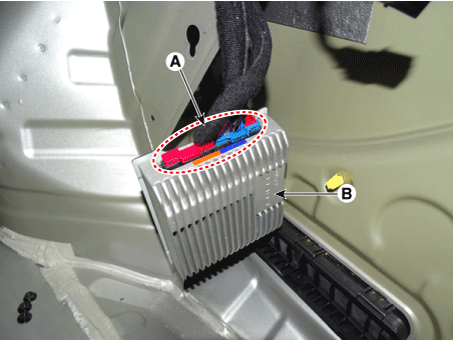

Remove amplifier (B) after disconnect the connector (A).

[5DR]
1.

Remove the subwoofer.

(Refer to AVN System - "Speaker")

2.

Loosen the nuts (A) from amplifier.

Tightening torque :

3.9 - 5.8 N·m (0.4 - 0.6 kgf·m, 2.8 - 4.3 lb·ft, 34.7 - 52.0 lb·in)

3.

Remove amplifier (B) after disconnect the connector (A).

Installation
1.

Install in the reverse order of removal.

Inspection


Warning and guide sounds regarding engine start and driving are generated by the external amplifier. Please refer to the following:

(Instrument Cluster and Gauge - Refer to "Instrument Cluster")

When the external amplifier or speakers are replaced with other products, a failure may occur in the amplifier and warning and guide sounds. (excluding the ETCS guide sound) may not be generated.

Virtual engine sound inside the vehicle (occurs in Sport mode) is generated by the external amplifier. Therefore, if the external amplifier or speakers are replaced with other products, a failure may occur in the amplifier and virtual engine sound may not be generated properly.

1.

In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (KDS).

The diagnostic system (KDS) provides the following information.

(1)

Self diagnosis : Checking failure and code number (DCT).

(2)

Current data : Checking the system input/output data state.

(3)

Actuation test : Checking the system operation condition.

(4)

Additional function : Controlling other features including system option setting and zero point adjustment.

2.

Select the 'Car model' and the system to be checked in order to check the vehicle with the tester.

3.

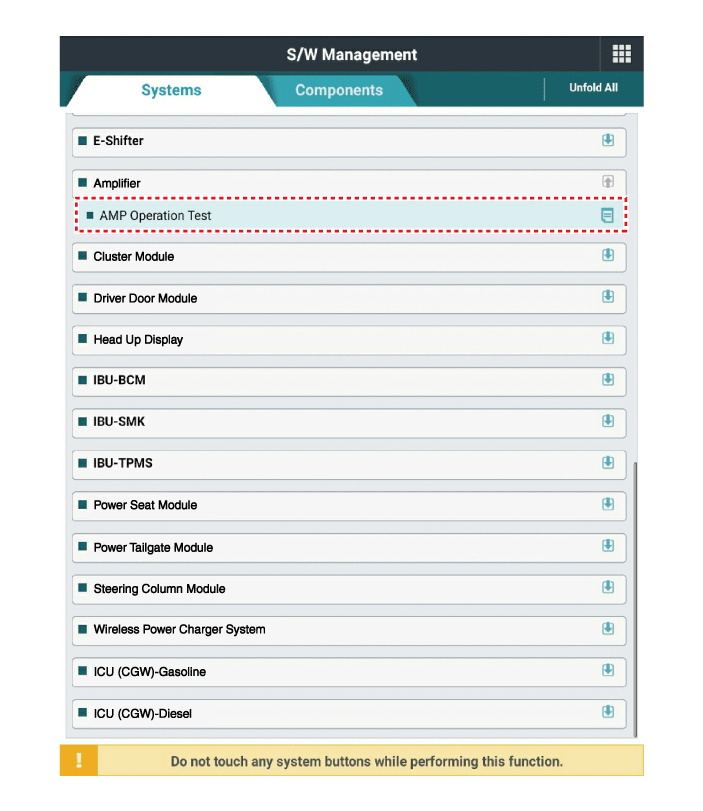

Select the 'Amplifier' to check the Audio.

4.

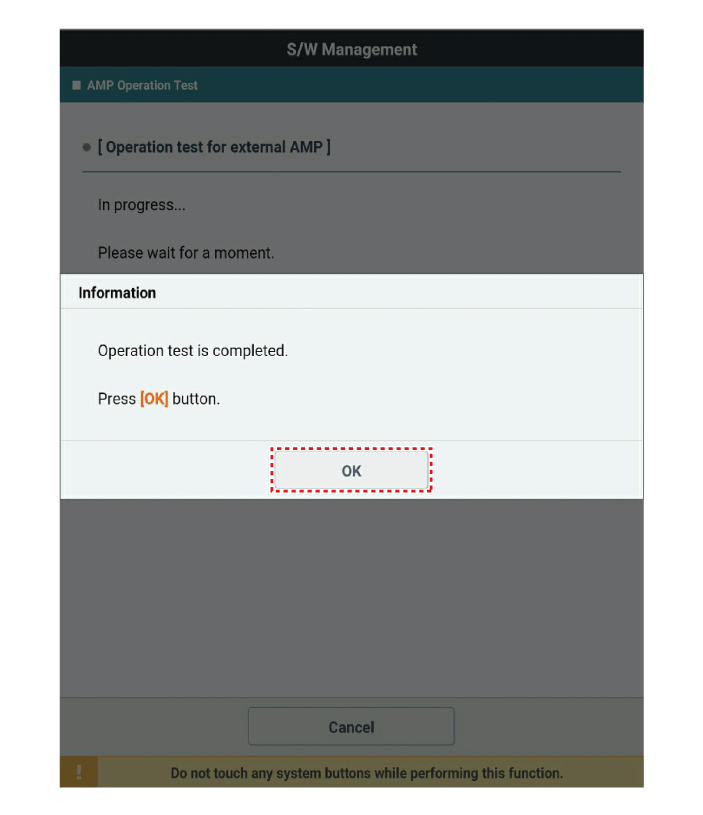

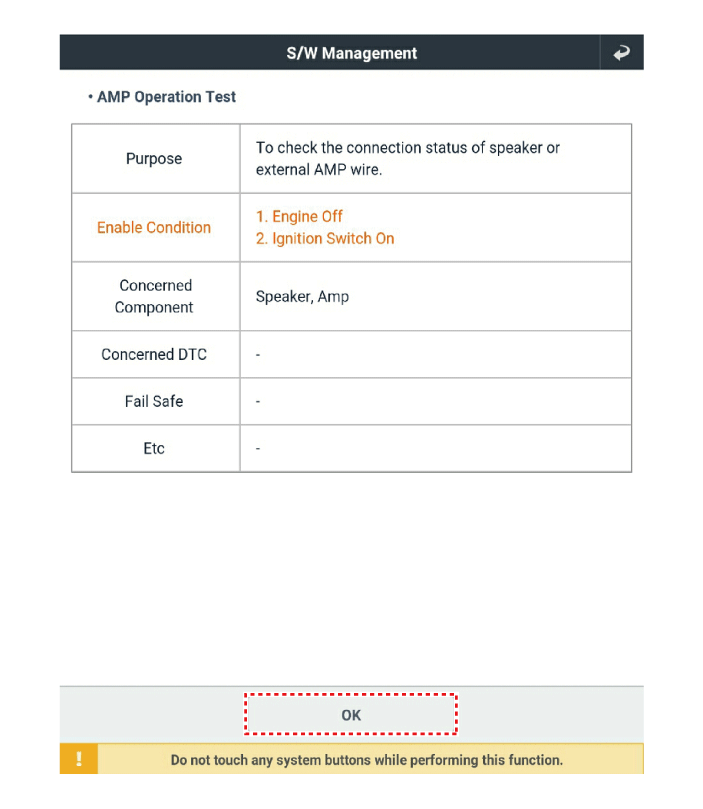

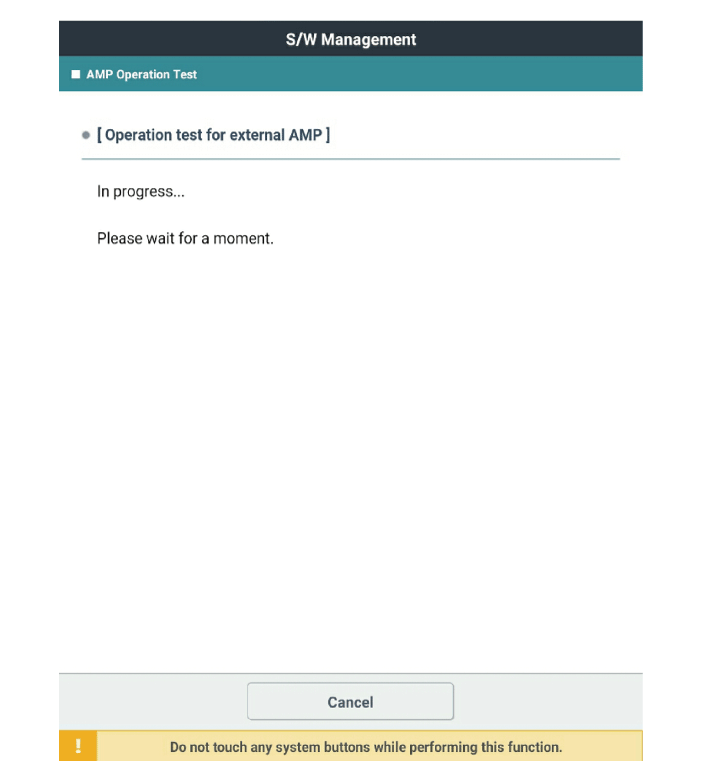

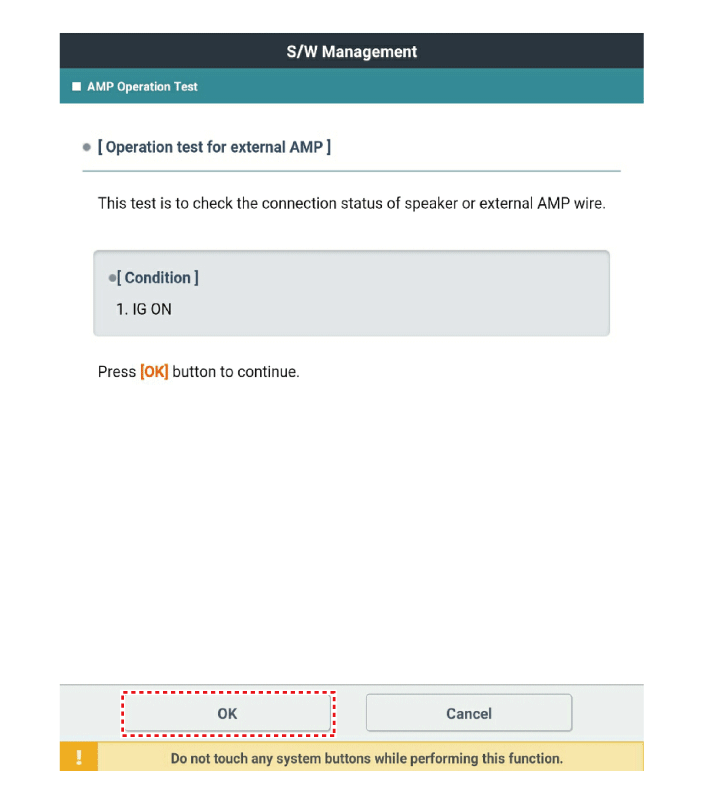

Select the 'Current data" menu to search the current state of the input/output data.

The input/output data for the sensors corresponding to the Audio can be checked.

Speakers
Components and components location Components Location 1. Tweeter speaker 2. Front door speaker 3. Rear door speaker 4. Crash pad center speaker 5 ...

Antenna
Components and components location Components 1. Audio head unit 2. Glass antenna 3. Roof antenna 4. Antenna feeder cable Repair procedures ...
