Kia Forte: Body (Interior and Exterior) / Trunk Trim

Kia Forte 2019-2020 (BD) Service Manual / Body (Interior and Exterior) / Trunk Trim

Components and components location
Components

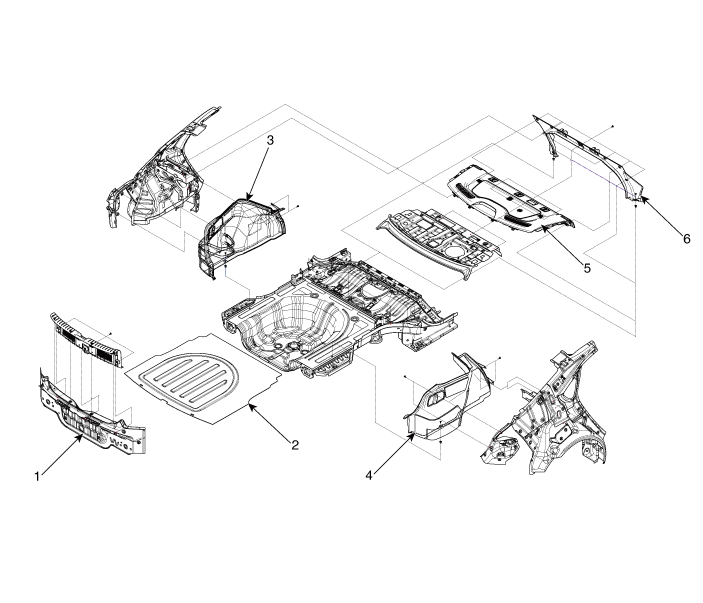

[4 Door]

1. Rear transverse trim
2. Luggage covering mat
3. Luggage side trim [LH]


4. Luggage side trim [RH]
5. Rear package tray trim
6. Luggage partition side trim

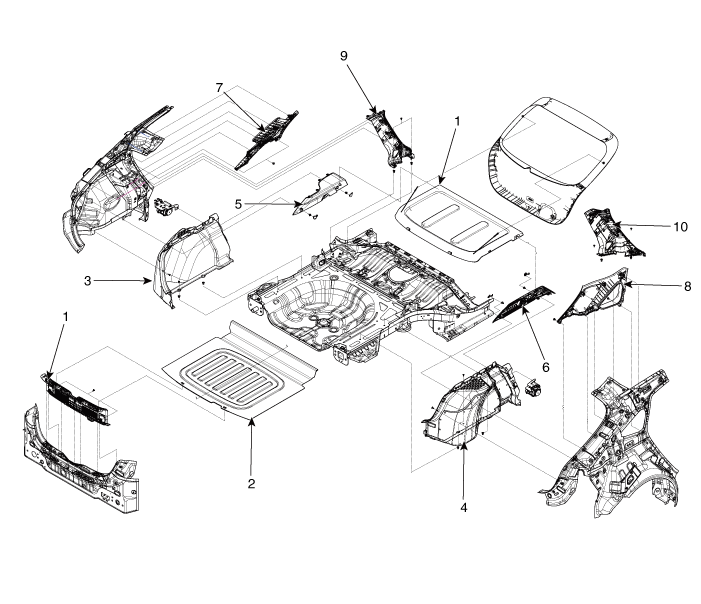

[5 Door]

1. Rear transverse trim
2. Luggage covering mat
3. Luggage side trim [LH]
4. Luggage side trim [RH]
5. Rear shelf side trim [LH]


6. Rear shelf side trim [RH]
7. Rear pillar trim [LH]
8. Rear pillar trim [RH]
9. Rear wheel house trim [LH]
10. Rear wheel house trim [RH]


Rear Pillar Trim
Components and components location Component Location [4 Door] 1. Rear pillar trim [5 Door] 1. Rear pillar trim Rep ...

Rear Transverse Trim
Components and components location Component Location [4 Door] 1. Rear transverse trim [5 Door] 1. Rear transverse trim ...
