Kia Forte: Trunk Trim / Rear Package Tray Trim

Kia Forte 2019-2021 (BD) Service Manual / Body (Interior and Exterior) / Trunk Trim / Rear Package Tray Trim

Components and components location
Component Location

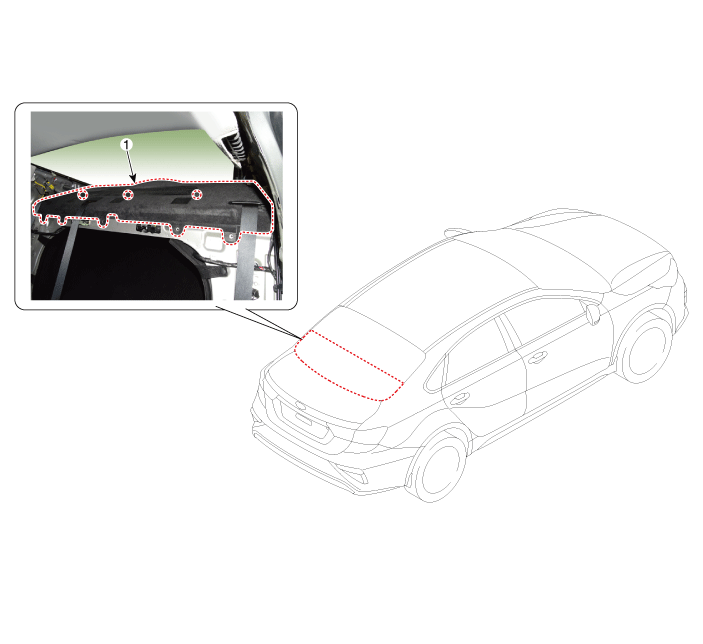

1. Package tray trim


Repair procedures
Replacement


Put on gloves to prevent hand injuries.



When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.

1.

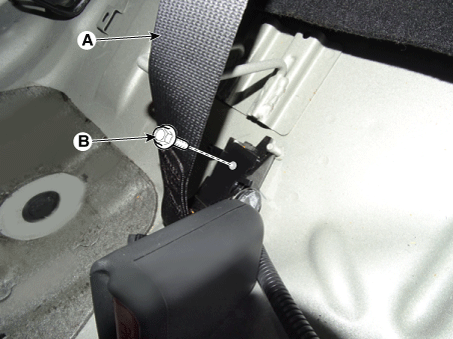

After loosening the mounting bolt, remove the rear seat belt lower anchor (A).

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 Kgf·m, 28.8 - 39.8 lb·ft)

2.

Remove the rear wheel house trim.

(Refer to Interior Trim - "Rear Wheel House Trim")

3.

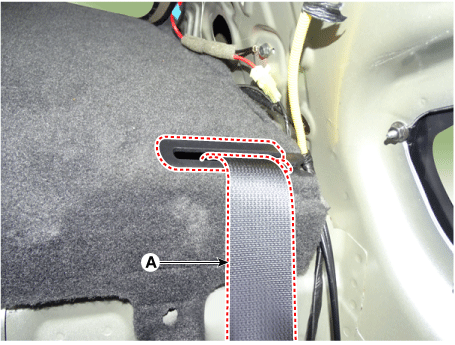

Remove the rear seat belt upper anchor (A).

4.

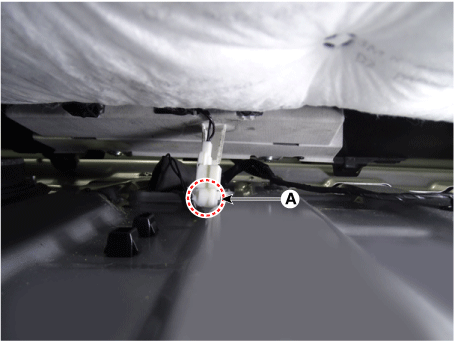

Disconnect the stop light connector (C).

5.

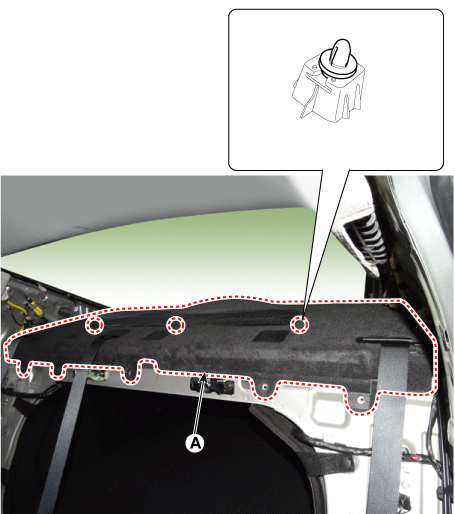

Using a screwdriver or remover, remove the package tray trim (A).

6.

To install, reverse the removal procedure.



Replace any damaged clips (or pin - type retainers).
