Kia Forte: Body Electrical System / Rear Glass Defogger

Kia Forte 2019-2022 (BD) Service Manual / Body Electrical System / Rear Glass Defogger

Components and components location

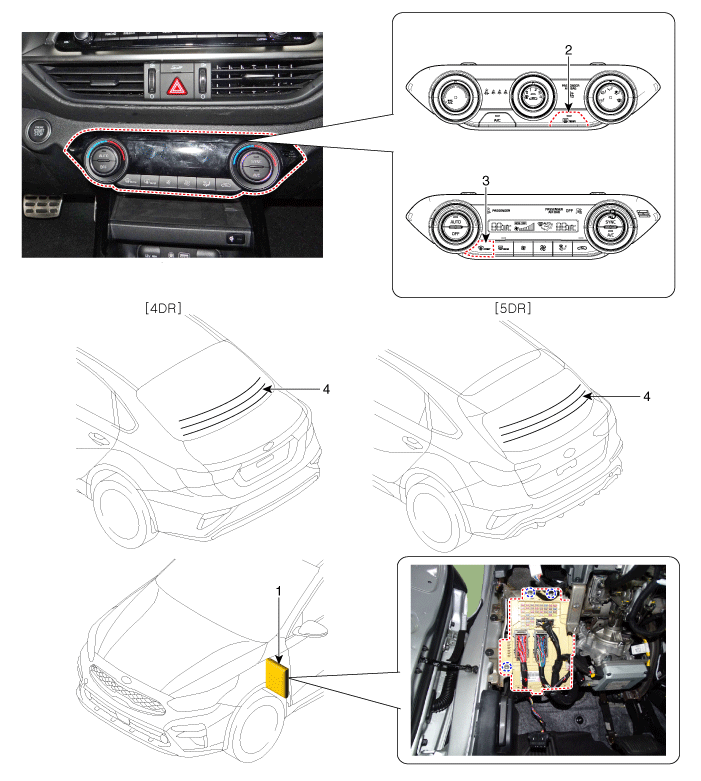

Component Location

1. Integrated central control unit (ICU)
2. Rear glass defogger switch (Manual)
3. Rear glass defogger switch (Dual)
4. Rear glass defogger
