Kia Forte: Cylinder Block / Water Jacket Separator

Kia Forte 2019-2021 (BD) Service Manual / Engine Mechanical System / Cylinder Block / Water Jacket Separator

Components and components location

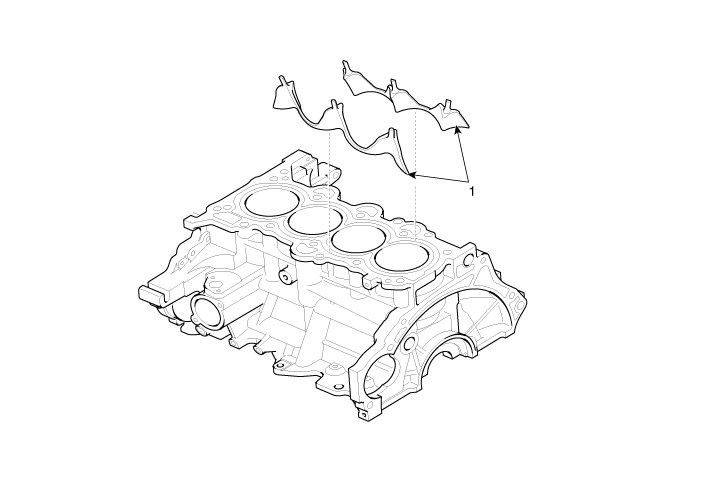

Components

1. Water Jacket Seperator

Repair procedures
Remove and Installation
1.

Remove the cylinder head assembly.

(Refer to Cylinder Head Assembly - "Cylinder Head")

2.

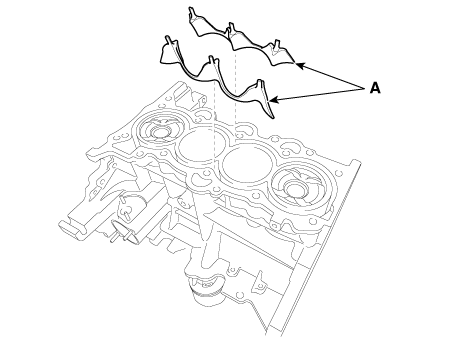

Remove the water jacket seperator (A).



Be careful not to deform or damage it when removing.

3.

Install in the reverse order of removal.
