Kia Forte: Trunk Lid / Trunk Lid Weatherstrip

Kia Forte 2019-2025 (BD) Service Manual / Body (Interior and Exterior) / Trunk Lid / Trunk Lid Weatherstrip

Repair procedures

Replacement

Take care to not let the tailgate fall on you as the lifts are removed. Have a helper hold the tailgate open, or use a secure method to hold it open.

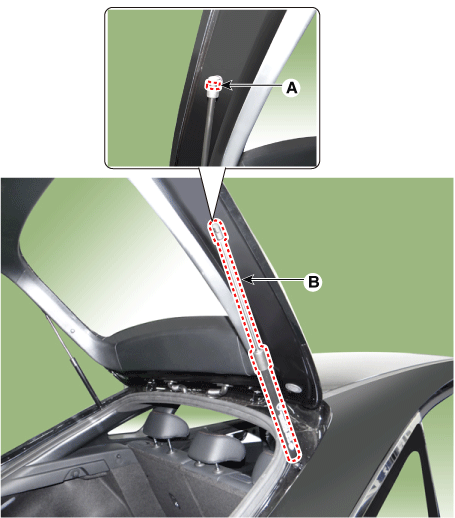

1.	Using a screwdriver, lift up slightly the socket clips (A) of both ends on the lifter (B), and then remove the lifter from the bracket.

Push the socket of the lifter into the bracket for installation.

Make sure the tailgate locks and opens properly and locks securely.
