Components and components location

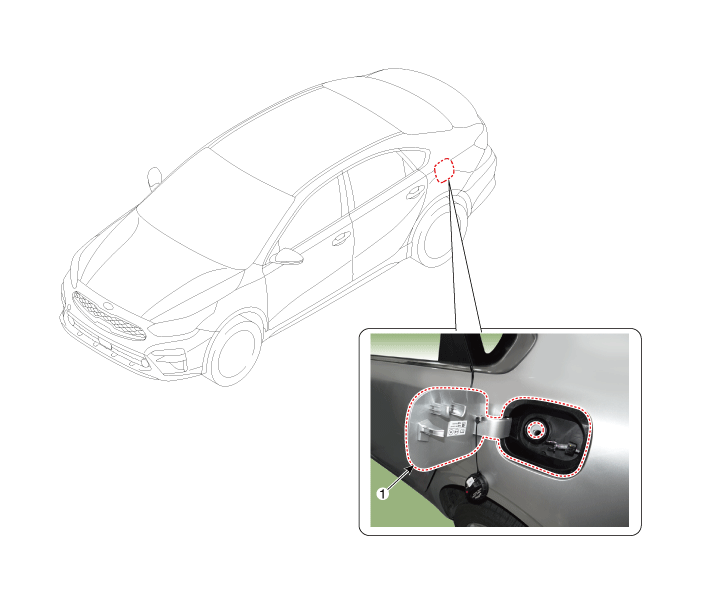

Component Location

1. Fuel filler door


Repair procedures
Replacement


Put on gloves to prevent hand injuries.



When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

1.

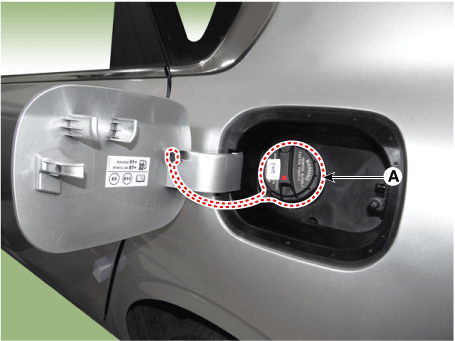

Open the fuel filler door (A).

2.

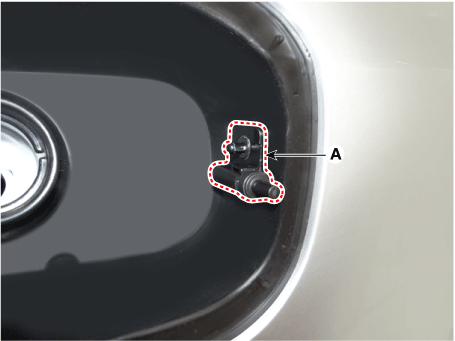

Using a screwdriver or remover, remove the fuel filler door bracket (A).

3.

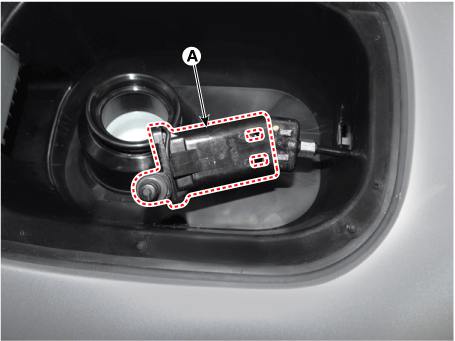

Remove the filler door bracket cover (A).

4.

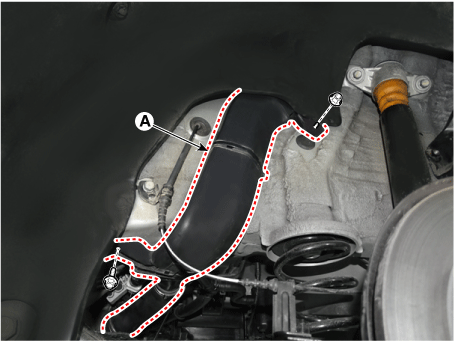

Loosen the mounting bolt and nut and separate the filler neck (A).

5.

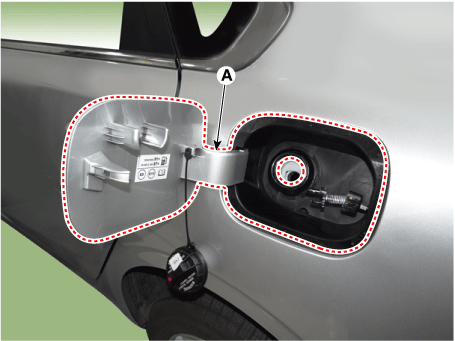

Using a screwdriver or remover, remove the fuel filler door (A).

6.

To install, reverse the removal procedure.



Make sure the fuel filler door locks / unlocks and opens / closes properly.
