Kia Forte: Body (Interior and Exterior) / Quarter Fixed Glass

Kia Forte 2019-2024 (BD) Service Manual / Body (Interior and Exterior) / Quarter Fixed Glass

Components and components location

Components

[4 Door]

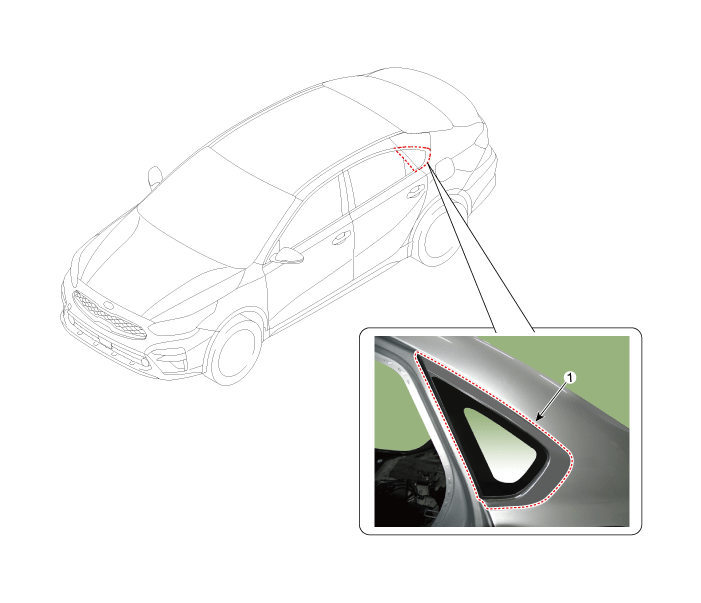

1. Quarter fixed glass

[5 Door]

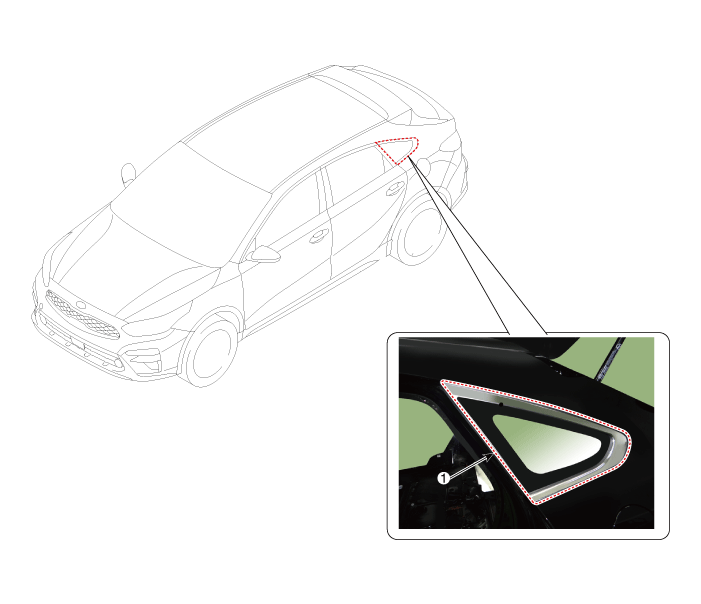

1. Quarter fixed glass

Repair procedures

Replacement

Put on gloves to prevent hand injuries.

Use seat covers to avoid damaging any surfaces.

1.	Remove the rear pillar trim. (Refer to Interior Trim - "Rear Pillar Trim")

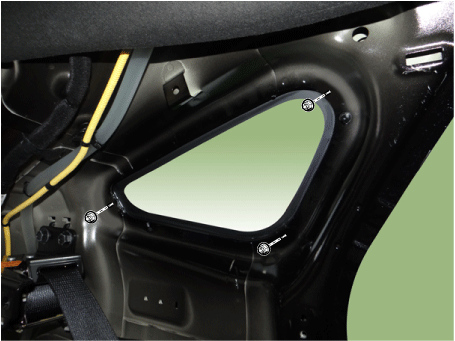

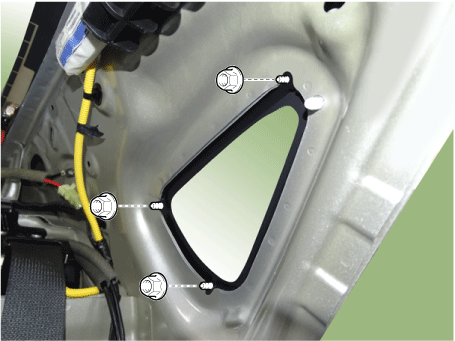

Loosen the quarter fixed glass mounting nut.

Tightening torque :

3.9 - 4.4 N·m (0.4 - 0.45 Kgf·m, 2.9 - 3.3 lb·ft)

[4 Door]

[5 Door]

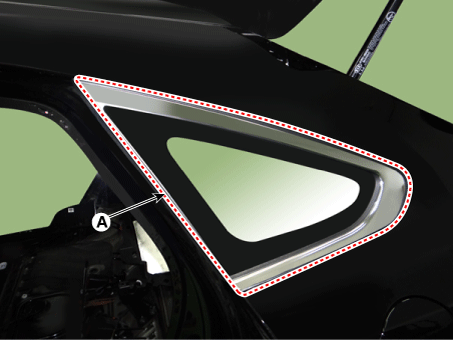

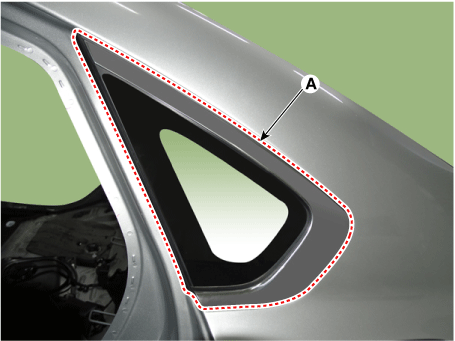

3.	Remove the quarter fixed glass (A). [4 Door] [5 Door]

4.	To install, reverse the removal procedure.
