Kia Forte: Fuses / Driver’s side fuse panel

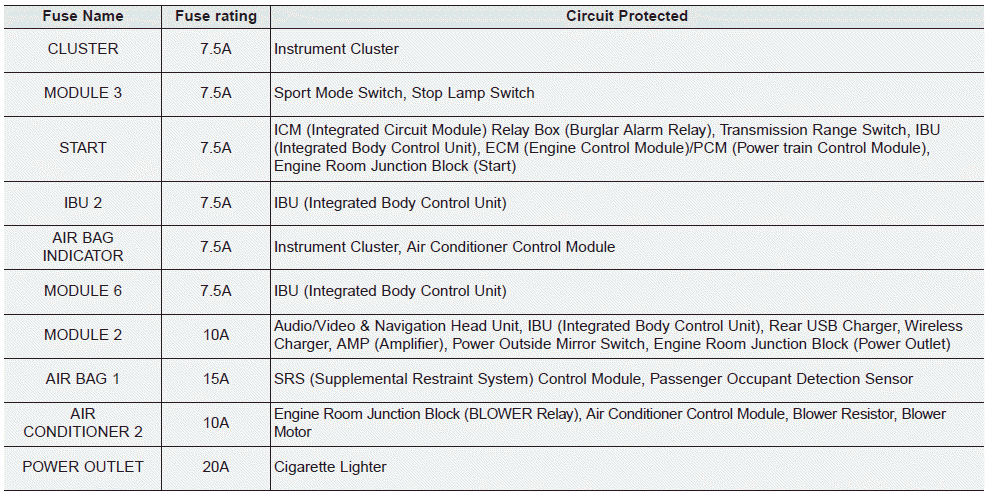

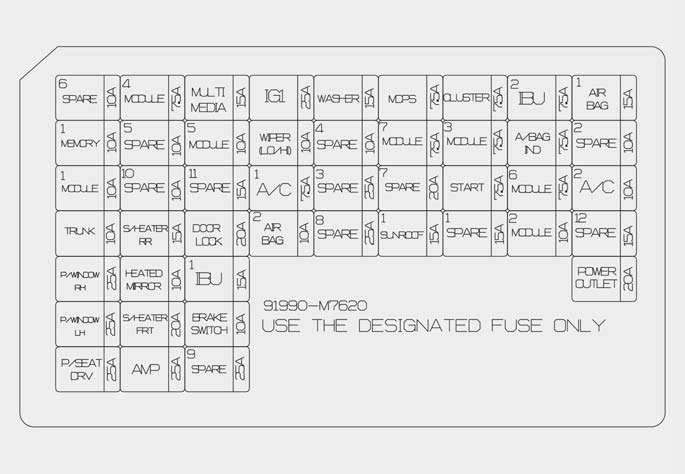

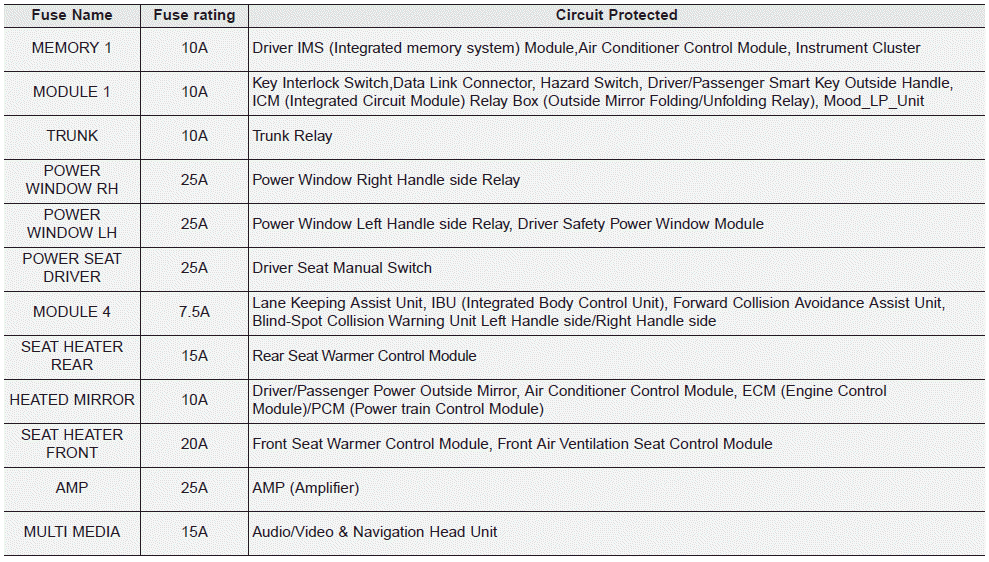

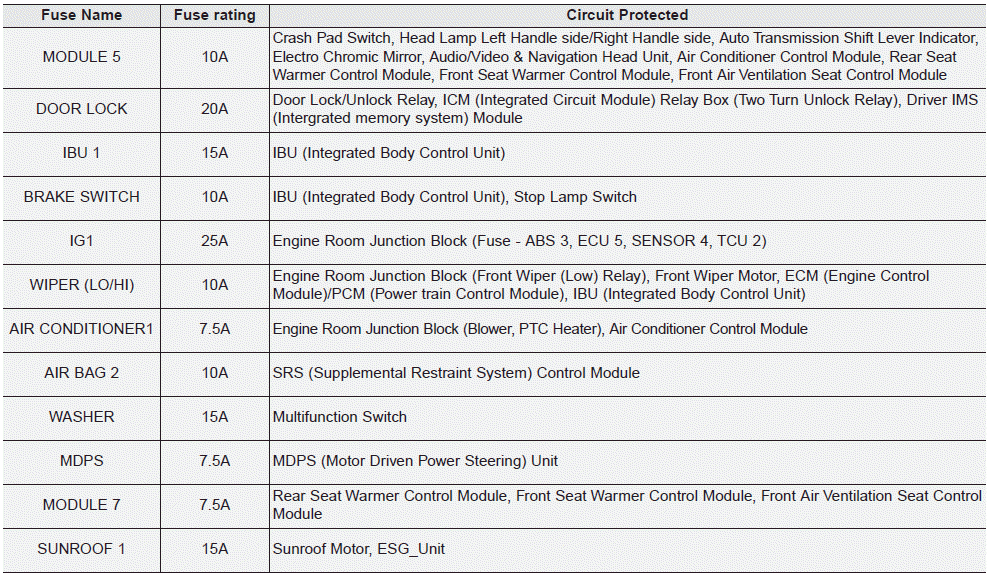

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
✽ NOTICE
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicle.

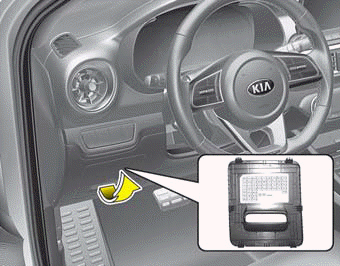

Instrument panel (Driver’s side fuse panel)
Engine compartment fuse
replacement
1. Turn the ignition switch and all
other switches off.
2. Remove the fuse panel cover by
pressing the tab and pulling the
cover up.
3. Check the removed fuse; replace it
if it is blown. T ...
Engine compartment fuse panel
Engine room compartment fuse panel
Engine room compartment fuse panel
Relay
Engine compartment fuse panel
(Battery terminal cover)
✽ NOTICE
Not all fuse panel descriptions in
...
