Kia Forte: Smart Cruise Control System / Smart Cruise Control Switch

Kia Forte 2019-2021 (BD) Service Manual / Engine Electrical System / Smart Cruise Control System / Smart Cruise Control Switch

Components and components location

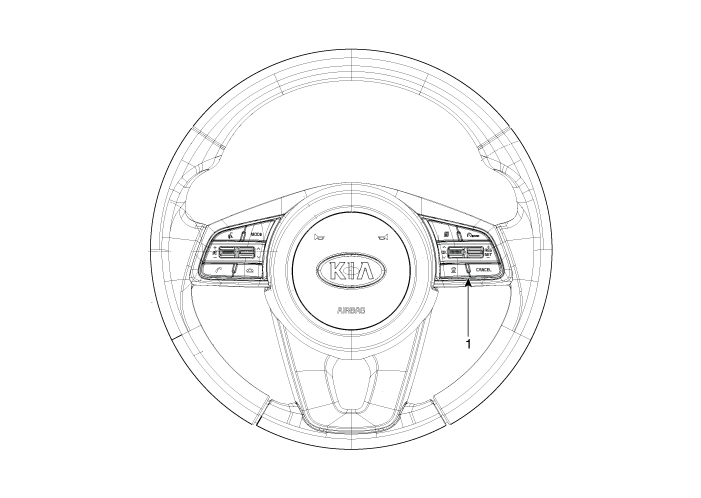

Components

1. Right remote control switch (Trip Computer + SCC)

Schematic diagrams

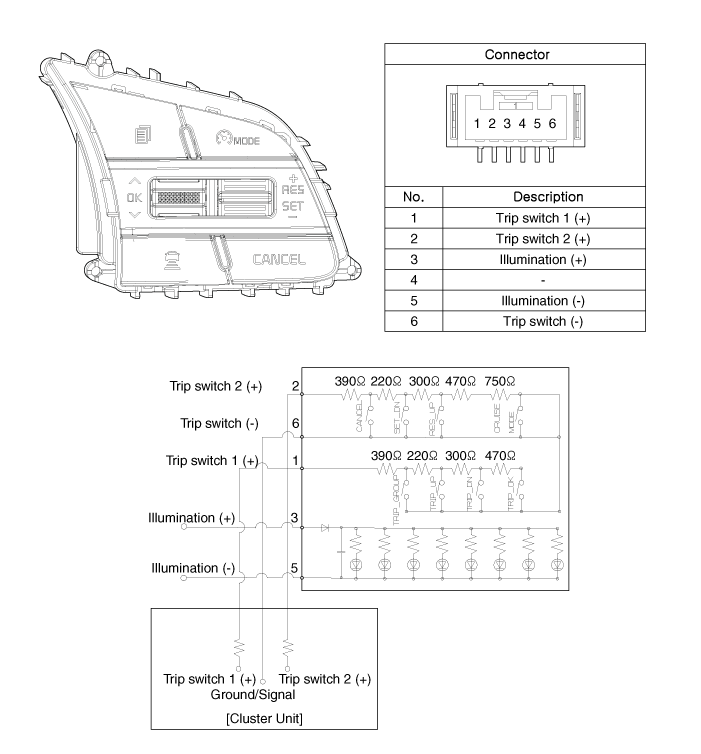

Circuit Diagram
[Trip + SCC]

Repair procedures
Removal and Installation
1.

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

2.

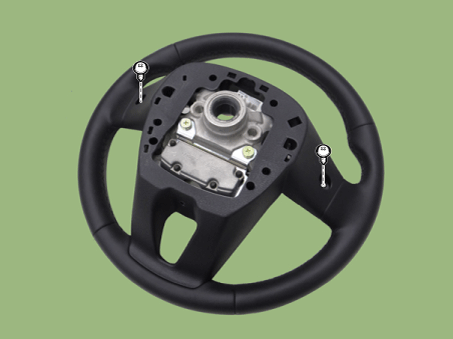

Remove the steering wheel assembly.

(Refer to Steering System - "Steering Wheel")

3.

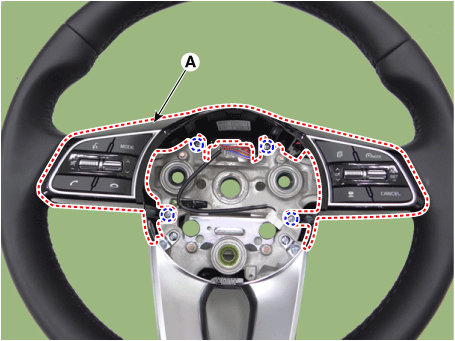

Remove the steering wheel bezel assembly (A) after loosening the mounting screws.

4.

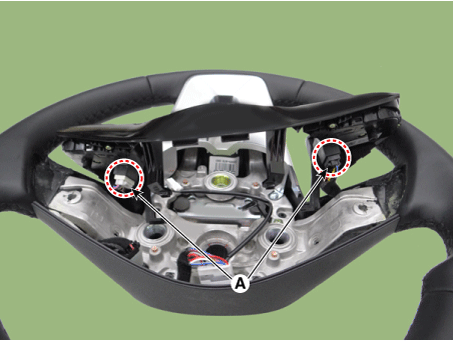

Disconnect the connector (A) from steering wheel remote control.

5.

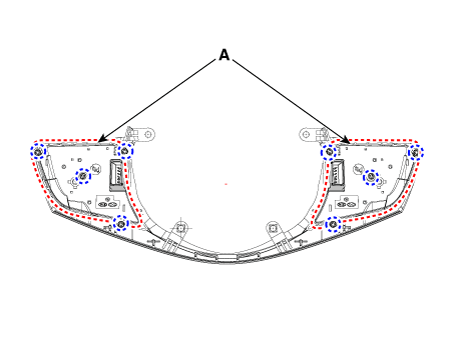

Remove the steering wheel remote control (A) from bezel after loosening the screws.

6.

Install in the reverse order of removal.

Inspection
1.

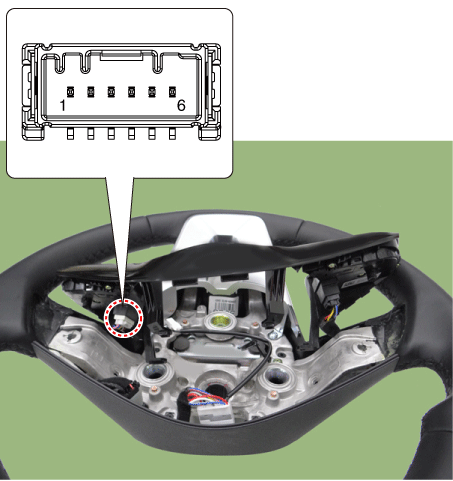

Check for resistance between terminals in each switch position (RH).

[Cruise]

Switch
Connector terminal
Resistance (±3%)
Cancel
2- 6
390 Ω
SET -
610 Ω
RES +
910 Ω
Cruise ON/OFF
1.38 kΩ
Cruise & Speed Limit ON/OFF
2.13 kΩ
SCC (Following distance control)
3.63 kΩ
