Kia Forte: Lubrication System / Oil Level Gauge & Pipe

Kia Forte 2019-2021 (BD) Service Manual / Engine Mechanical System / Lubrication System / Oil Level Gauge & Pipe

Repair procedures
Removal and Installation
1.

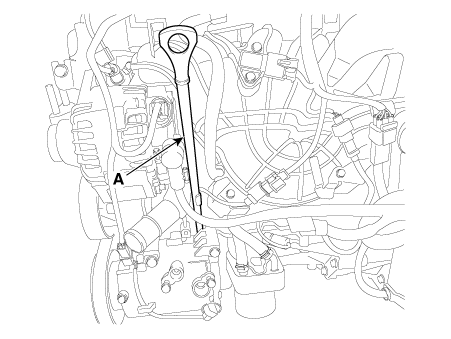

Remove the oil level gauge (A).

Tightening torque :

9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)

2.

Install in the reverse order of removal.
