Kia Forte: Lubrication System / Oil Cooler

Kia Forte 2019-2025 (BD) Service Manual / Engine Mechanical System / Lubrication System / Oil Cooler

Repair procedures
Removal
1.

Remove the engine room under cover.

(Refer to Engine and Transmission Assembly - "Engine Room Under Cover")

2.

Drain the coolant.

(Refer to Cooling System - "Coolant")

3.

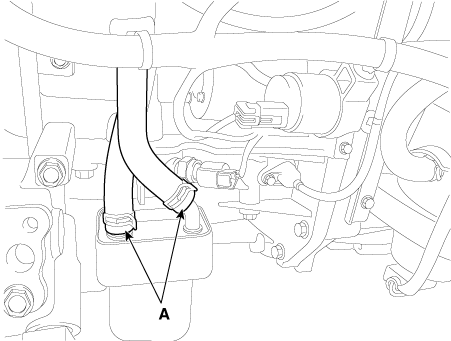

Disconnect the coolant hose (A).

4.

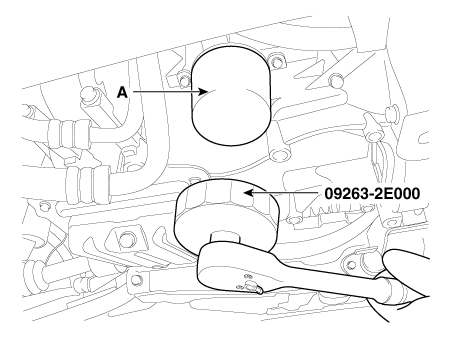

Remove the oil filter (A) with the oil filter wrench (09263-2E000).

5.

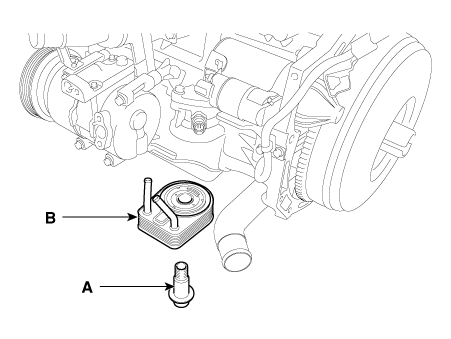

Loosen the mounting bolt (A), and then remove the oil cooler(B).

Installation
1.

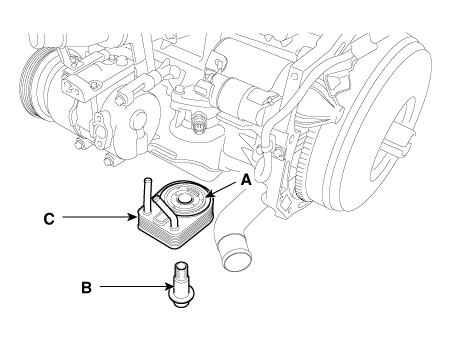

Apply a light coat of engine oil to the oil cooler packing surface (A), and then install the oil cooler(C) with fix bolt (B).

Tightening torque :

50.0 - 55.8 N·m (5.1 - 5.7 kgf·m, 36.8 - 41.2 lb·ft)

2.

Install the oil filter (A) with the oil filter wrench (09263-2E000).

Tightening torque :

11.7 - 15.6 N·m (1.2 - 1.6 kgf·m, 8.6 - 11.5 lb·ft)

3.

Connect the coolant hose (A).

4.

Fill the radiator with coolant and check for leaks.
