Kia Forte: Light bulbs / Light bulb position (Rear)

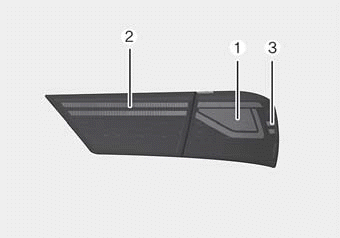

■ Rear combination lamp - Type A

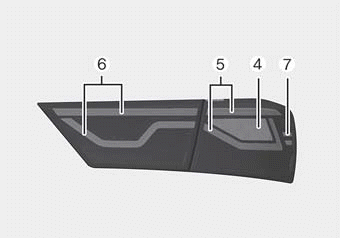

■ Rear combination lamp - Type B
(1) Stop and tail lamp (Bulb type)
(2) Tail lamp (Bulb type)
(3) Side marker (Bulb type)
(4) Stop lamp (LED type)
(5,6) Tail lamp (LED type)
(7) Side marker (LED type)

■ Rear turn signal lamp / Back up lamp

■ License plate lamp

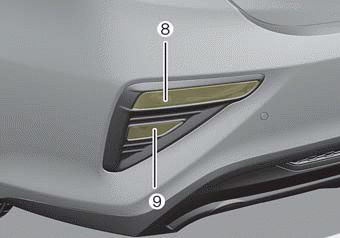

(8) Rear turn signal lamp (Bulb type)
(9) Back Up lamp (Bulb type)

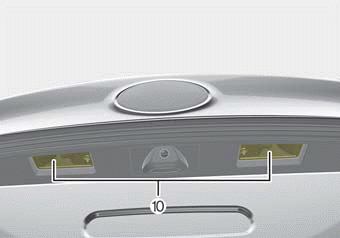

(10) License plate lamp (Bulb type)

■ High mounted stop lamp

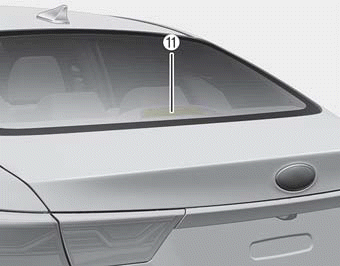

(11) High mounted stop lamp
(Bulb or LED type)
■ Head lamp - Type A
■ Head lamp - Type B
■ Head lamp – Type C
■ Front turn signal lamp
■ Fog lamp
■ Day time running lamp
(1) Headlamp (Low) (Bulb type)
(2) Headlamp ...
■ Type A
■ Type B
(1) Side repeater lamp (LED type)
(2) Side repeater lamp (bulb type) ...
