Kia Forte: Light bulbs / Light bulb position (Front)

Kia Forte 2019-2024 (BD) Owner's Manual / Maintenance / Light bulbs / Light bulb position (Front)

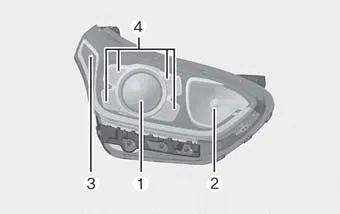

■ Head lamp - Type A

■ Head lamp - Type B

■ Head lamp – Type C

■ Front turn signal lamp

■ Fog lamp

■ Day time running lamp

(1) Headlamp (Low) (Bulb type)
(2) Headlamp (High) (Bulb type)
(3) Side marker (Bulb type)
(4) Day time running lamp / Position lamp (LED type)
(5) Headlamp (Low/High) (LED type)
(6) Side marker (LED type)
(7) Front turn signal lamp (Bulb type)
(8) Front fog lamp (Bulb type)
(9) Day time running lamp (Bulb type)

    Bulb replacement precaution Please keep extra bulbs on hand with appropriate wattage ratings in case of emergencies. Refer to the "Bulb Wattage" section in Chapter 8.

    ■ Rear combination lamp - Type A ■ Rear combination lamp - Type B (1) Stop and tail lamp (Bulb type) (2) Tail lamp (Bulb type) (3) Side marker (Bulb type) (4) Stop lamp (LED type) (5,6) Tail lamp (LED type) (7) Side marker (LED type) ■ Rear turn signal lamp / Back up lamp ■ License plate lamp (8) Rear turn signal lamp (Bulb type) (9) Back Up lamp (Bulb type) (10) License plate lamp (Bulb type) ■ High mounted stop lamp (11) High mounted stop lamp (Bulb or LED type)
