Kia Forte: Light bulbs / Light bulb position (Front)

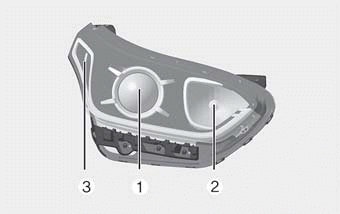

■ Head lamp - Type A

■ Head lamp - Type B

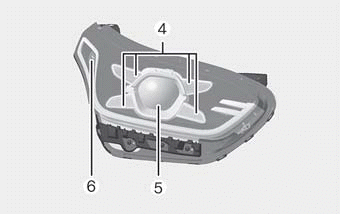

■ Head lamp – Type C

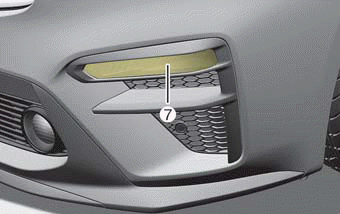

■ Front turn signal lamp

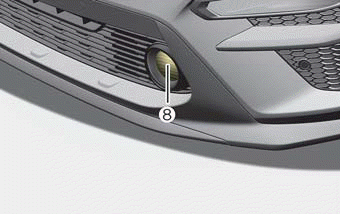

■ Fog lamp

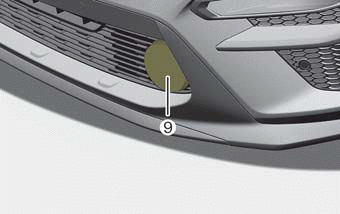

■ Day time running lamp
(1) Headlamp (Low) (Bulb type)
(2) Headlamp (High) (Bulb type)
(3) Side marker (Bulb type)
(4) Day time running lamp / Position
lamp (LED type)
(5) Headlamp (Low/High) (LED type)
(6) Side marker (LED type)
(7) Front turn signal lamp (Bulb type)
(8) Front fog lamp (Bulb type)
(9) Day time running lamp (Bulb
type)
Bulb replacement precaution
Please keep extra bulbs on hand
with appropriate wattage ratings in
case of emergencies.
Refer to the "Bulb Wattage" section
in Chapter 8.
When changing lamps, fir ...
